PCMtuner-tool

 Car: Volkswagen Polo 1.2L TDi 75Hp ECU: Delphi DCM 3.7 PCMTuner read and write via OBD, only wire OBD, no need to remove ECU and do not open cover. Serie 75Hp @ Stage2 115Hp (+40) + Vmax Remove DTC DPF-OFF + EGR-OFF ok. wire disconnect unplug EGR PCM Tuner OBD read and write with Protocols Module54 Vag 1.2L DCM3.7 Auto checksum. Car starts. Car goes well. Image attached:

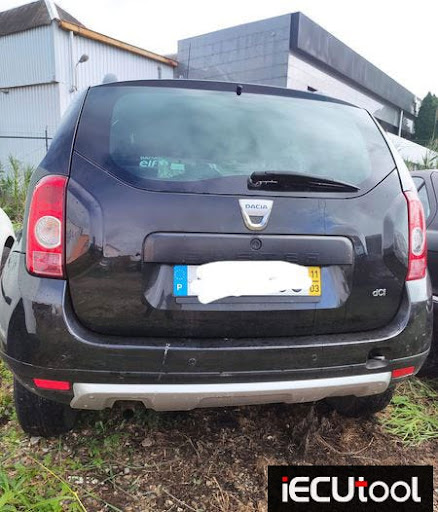

 Dacia Duster 1.5DCI — 2011 DCM3.4 OBD Read and Write with pcmtuner successfully. With OBD module 25. Checksum ok.

 Today first one with New tprot. Edc17cp20 vw T5 2.0 Biturbo stage 1 dpf agr off. PCMTuner ench 71 unsuportet t-prot. 5 minutes later opend ecu. Module 53 bsl 1 cable for bootpin. Read password Read flash and eeprom 10 minutes later write Back and all fine. always good to have the BSL option because a friend from VR write (vr wrong modified or wrong file from server) and seen this week 3 ecus bricked by obd2 and restored them with bsl. Read: PCMtuner Module 53 — Infineon Tricore BSL Operation Next time don't use welding. use bdm pin. You have good eyes if you still can solder that pin.

 Question: 2017 Hyundai Tucson is a very popular car in USA and is not even listed on pcmtuner ? Any idea? 、 Answer: Yes, with module 19 via OBD. Very easy module 19 Obd, Read 15 minutes, Write 3 minutes. Module 19 Kia/Hyundai Kia/Hyundai: 1.4L, 1.6L (M(G)7.9. Kia/Hyundai: 1.1L-1.6L (M(G)7.9.7) Only writing, checksum correction. Kia/Hyundai: 1.4L, 1.6L (ME17.9.11/12/13) Kia/Hyundai: 1.4L, 1.6L (ME(G)17.9.21) Kia/Hyundai: 1.6L, 3.0L (ME17.9.2/ME(D)(G)17.9. Reading, writing, checksum correction.

 Question: Has anyone done PSA Delphi DCM6.2A ECU in bench mode with pcmtuner ? Can you please share pinout and what family to use to read it? Solution: Not supported in any Module with PCM tuner. the original pcmflash does not read this ecu yet (only test of the new module), protocol is not activated. PSA Delphi DCM 6.2 A is supported by OBD and boot+JTAG from Dfox or KT200 Clone .

 SIMOS 8.6 requires unlocking in BSL mode by the appropriate module. BSL is usually boot mode for unlock. Same as PCR2.1 . Example: Audi A7 2012 2.8 fsi simos 8.6 unlock, after read/write simos8.6 with pcmtuner successfully. all resistor 1 kom How to work with blocks that require unlocking (PCR2.1, SIMOS8.6): 1) Check the current lock status in the car, if the check is disabled, you can go to read-write, otherwise follow the instructions 2) Remove the unit from the car, open it, transfer the processor to BSL mode using the connection below (PCR2.1, SIMOS8.6), the work as a whole as in the package 53 (you can use tools like powerbox, and you can do without them) SIMOS8.6 Unlock pcmtuner pinout Red — +12, Black — GND, Yellow — CAN-HIGH, Blue — CAN-LOW 3) Choose "SIMOS8.6 (EEPROM/UNLOCK/BSL) or PCR2.1 (EEPROM/UNLOCK/BSL)" depending of ECU type 4) Click Identification — save ECU data somewhere in a text file. 5) Click Read — save the EEPROM 6) Given that EC...

 Honda EDC17C58 read and write with pcmtuner Bench module 71 successfully. DPF OFF + EGR OFF (Flash + Eeprom backup) Pcmtuner pinout Honda EDC17C58

 Q: Is it possible to read the VW MED17.1.27 control unit ecu with pcmtuner ? I made the connection but failed. Solution: Here is the MED17.1.27 pinout to pcmtuner module 71 If failed to read ecu, disconnect EVERYTHING, Repin ECU slowly and carefully making sure all pins are contacting, make sure the breakout cable is pushed properly into the pcm tuner device, restart computer, then add 12v power — and try again BUT first ID, do try and read, if not ID then no point.

  PCMTuner was unsuccessful to read Renault Continental EMS 3110 by OBD2, any idea? PCM Tuner will read ems3110 continental (TC1766/1504KB) via obd. with Module 22 Valeo V40/V42 (SH7058/1024KB) Sagem 3000 (SH7055/512KB) EMS3110 (TC1766/1504KB) Dacia, Logan, Sandero, Fluence, Megane, Almera EMS3120 (TC1738/2048KB) Duster, X-Ray EMS3125 (TC1782/2560KB) Clio 4 1.6T EMS3150 (TC1767/2048KB) Nissan: Juke 1.2T EMS3155 (TC1782/2560KB) Reading, writing, checksum correction. If failed to read ems3110, disconnect ECU coolant sensor, keep ignition live by pressing start button every 20 secs for example. Disconnecting ecu coolant sensor or doing on bench with breakout box. If car is keyless you need keep ignition alive an immo off. If you have OBD breakout cable try this pinout.

  PCMTuner flash Iveco edc17c49 read/write OK. Here is the edc17c49 pinout to pcmtuner this is trick for iveco you need capacitor for gpt Make sure capacitor polarity is correct, + to pcm tuner and — to ecu. Put capacitor 10uF only between ECU pin 59 and gpt01 brown wire. There are 2 possibilities for canbus on these ECUs. You must use a capacitor on Iveco edc17c49 even with the original pcmflash and scanmatik (capacitor 10uf must be used for gpt1).

  Problem: I need to read MED17.5.5 AUDI A1 ecu with pcmtuner module 71 . It says unsupported TPROT version, any solution? Solution: It read fails due to security tprot hence the tool provided message cannot access processor. This ECU has dealer security update so cannot be read in bench, try module 53 if you can read password ok in 71 You must read MED 17.5.5 in boot mode. Open ecu and read password. PCMTUNER Module 53 instruction

 Problem: My PCMtuner work fine on the bench for some ECU's and not for others. For example it read good for module 71, EDC17C46 VW caddy 2013. But when i try to read old ECU model like Mitsubishi module 31, i got a failure message. So when i test two trimnals positive wire and negative black wire by multimeter i see 2v output! not 12v, Now what i do for fixed this issue please? Solution: For Mitsubishi ECU like E6Txxx you cannot do, you need genuine tractrix openport j2534 with breakout cable , these ecu require 18v programming line (VPP) which pcmtuner not support.

 Question: Do you have some tips or things to know about SID211 Read and write using pcmtuner ? Answer: Module 7 for writing over OBD but must unlock ecu in BSL with 53 first, bsl unlock requires ecu to be opened. BSL with Module 53 for Ford transit. Read password and save before putting into bsl. Connect cnf as this connect boot Check PCMTuner Module 53 BSL Instruction
