How to Set Up PADFlash Software on Windows 10

  How to Install & Activate PADFlash ECU programmer Software on Win10? Visit website www.padflashr.uk to download software and follow instructions below for self-installation. How to Install, Register and Activate PADFlash Software on Win10? Run PADflash updater tool on desktop and install software. Hit OK to register padflash. Input email and select language, then Submit. PADFlash will ask to enter activation code. Contect PADFlash customer service info@padflashr.uk for activation code. Activation time is 1: CET, UTC+1 11:00–14:00 2: CEST, UTC+2 12:00–15:00 Spanish time Enter activation code and hit Activate. Activation is done. Now start padflash software. Follow this guide to run PADflash software after activation. http://www.pcmtuner.org/how-to-use-padflash-software-after-activation-on-win10/

PADFlash Software Free Download for ECU TCU Programming

 The PADFlash ECU TCU programmer software is now available for free download on its official website. Website address: http://www.padflashr.uk/download.html From there, you can: Check the driver list and download the PADFlash Updater Tool Manager . View the support list by vehicle brands to see which models are compatible with the software. Laptop requirement: Compatible operating systems: Windows 7 Windows 10 CPU>2.5GHz (Intel i5, i7) RAM> 4GB OS 64bit Laptop needs with USB 2.0 port and USB 3.0 port at the same time. After installing the PADFash updater tool, follow this guide to activate PADFlash software. http://www.pcmtuner.org/how-to-use-padflash-software-after-activation-on-win10/

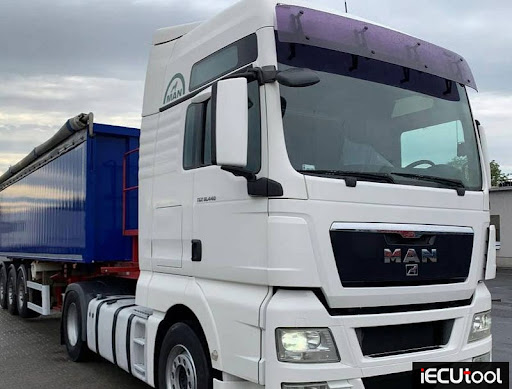

PADFlash OBD mode for MAN Truck EDC7C32 ECU programming

  Padflash ecu programmer read and write MAN truck Bosch EDC7C32+ MPC561 successfully. Mode: OBD mode. Select Car- DAF- CF75- Cummins Bosch EDC7C3. Read connection instructions, connect PADFlash with vehicle via OBD cable. Hit ECU Data to connect to the ECU. On connection ECU details are shown. Create a backup of this ECU. Open modified data. Write data. Done.

PADFlash: OBD and Bench mode to read Mercedes CRD3.10 ECU

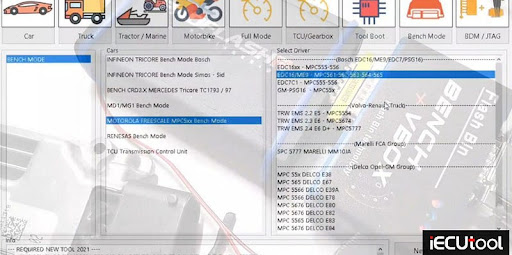

  PADFlash ecu programmer will read and write Mercedes Delphi CRD3.10 ECU via OBD and Bench mode. Bench mode: Run PADFlash Updater manager tool. Hit Search and find pinout for CRD3.10. Connect the bench cable to ECU. Connect the bench box to PADFlash. Please use the correct gender adapter. Tool has 1 for OBD cable and another for bench box. In PADFlash Updaters, hit " Activate FW " to download a license key. (For each ecu we want to work with.) Hit " Activate " to activate the tool. Click OK when you see the tool login. Run PADflash software . Select driver. Select Bench mode- Bench CRD3.x Mercedes Tricore TC1793/97- Bench CRD3.X Mercedes, press Next. Read the instructions, use the correct gender adapter. Connect to the ECU. On connection ECU details are shown. Create a backup of this ECU. Then we can write modified data to the ECU. OBD Mode: Run PADFlash Updater manager tool, hit "Activate FW" then "Activate" to ...

Guide to Using PADFlash Software After Activation on Win10

  How-to guide: install, activate   PADFlash ECU TCU Programmer software , check wiring diagram and use software. Operating system requirements:  Win7 64bit (Win10 64bit coming soon) Computer hardware requirements:  RAM not less than 4GB, CPU not less than 2.5GHz How to Install & Active PADFlash Software on Win10? Currently, there is no software download link available. The software can only be installed remotely. The technician will upload the software later, and we will then update the instructions for self-installation. After receiving the device, please follow the steps below to install it 1: Please install Teamviwer remote control software on your computer 2: Connect the device host USB cable to the computer 3: Insert the USB KEY that comes with the device into the computer 4: Maintain a good working network 5: Turn on your teamviewer device and send the remote control ID and password to your sales, or send an email to  info@padflashr.uk 6: Remote techn...

How to Read and Write Ford SID902 ECU with PADFlash Programmer

 Will Padflash programmer read and write Ford Siemens VDO SID902 ECU? Yes, PADFlash will read and write SID902 via Jtag . SID902 is not possible to do on bench mode. Only Jtag or OBD. PADFlash can do it via Jtag mode. PAD Flash software will show you jtag wiring diagram. If need to read SID902 ECU via OBD , choose Alientech KESS3 , Flex or Autotuner.
