 Here is the pcmtuner wiring diagram pinout to EMS 2205 Ford Fiesta 1.6 petrol USA. Writing, checksum correction only in OBD bench (with obd breakout cable ) also try read password with module 53 , if read password then can possibly do ecu in BSL too Bootpin

 Q: I am looking for the pcmtuner pinout for a mev17.2.1 and I found it but there is a brown thread and I don't know what it corresponds to. A: lay it down in 29 and lay back in 11 Here is the pcm flash pinout MEV17.2.1 TC1796 the other sent from the pcmtuner app

 How to View Fetrotech Tool Wiring Diagrams 1. Users with PCMtuner devices can search it in the PCMtuner app, take audi edc16u1 as an example, and follow the steps below: To purchase a separate black version of Fetrotech tool , you can log into the official website (www.tuner-box.com), and click "Fetrotech pinout" under the "Download" category, and then enter your email and phone number to view the wiring diagrams as shown below.

 Question: Has someone maybe pinout/Wiring diagram for Siemens ECU for Renault 237106288r EMS3155? Renault Megane IV 2016. I tried to read on bench with pcmtuner but no luck. Thank you Solution: Try module module 59: 1.2T EMS3155 UDS (TC1782/2.5MB) or module 22: Nissan: Juke 1.2T EMS3155 (TC1782/2560KB) you can try, UDS requires immobiliser authorization on many ECU so cannot do bench just read it in obd with pcm tuner . not start in bench because immo active and key.

 Question: Does anyone have pinout for edc17cp60 mercedes? I did not found it in pcmtuner app ? Solution: Here is the pcmtuner edc17cp60 pinout. 12V– T58 Pin3 Ign — T58 Pin 15 Gnd — T58 Pin 4 Can+ T58 Pin 41 Can- T58 Pin 54 S1– T96 Pin 38 S2– T96 Pin 87 Or use this pinout, it is the same You can also read it OBD on car. One of our customers has tested it working fine OBD read/write/checksum.

 Question: I need to read Renault Kangoo 1.5dci 110hp SID310 with pcmtuner boot mode . I do not find (B11 ) it's NF1 ?? Solution: You can read sid 310 via pcm tuner boot module 53 BSL (open ecu and connect boot, cnf, or resistors to pcb). Fits any TC17xx ECU that does not require password retrieval. Join link see PCMtuner Module 53 — Infineon Tricore BSL Operation You can also do it with module 59 via OBD, or godiag OBD option if removed the ECU. Do it via boot mode you need flash and eeprom separate. Read also: http://www.pcmtuner.org/pcmtuner-failed-to-read-renault-sid310-solution/

  PCMTuner will read and wirte HYUNDAI VELOSTER MED17.9.8 ECU/ECM with module 71. Read full flash and eeprom with module 71. Users can read and write generally on bench mode for cloning. You should do bench ok in 71, but if bench mode not working try read password and do 53. ( PCMtuner Module 53 BSL ) Some users copied one of these for obd. PCMTuner Hyundai VELOSTER MED17.9.8 Pinout Test report: Was able to read and write MED17.9.8 Full, on bench module 71.

 PCMTuner read and write Audi Q7 3.0d Edc17cp04 module 71 fast and easy. All info in the pcmtuner software and using power supply 13V+. Here comes the edc17cp04 tc1796 wiring diagram   If pcmflash give this error below and read unsuccessfully, recheck ECU wiring very carefully, If You CANNOT ID ECU then you will not be able to read. But for older CP04/CP14 it’s is better to use OBD protocol pcmtuner module 50 as EDC17U01/U05/CP04/CP14 use can communication. WITH ECU IN CAR : 1. After identified you have hw and SW numbers 2 go to vz-performance and search for the file you need with the details 3 download the file and modify for tuning etc 4 write file via obd Always works well for ID to obtain vr file, and writing fine too.

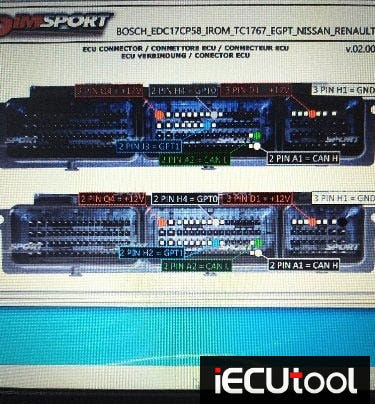

 Check the pcmtuner pinout for edc17cp58 Renault laguna 2.0 DCI. Allready done with success. read, egr dpf off, write, no problem. 2 different pinout (Bosch EDC17CP58 IROM TC1767 EGPT Nissan/Renault), take care. For me second one read no problem. Try both of you don’t know which pinout is correct.

 I'm trying to read one Bosch MED17.4 from a Peugeot 207 1.6t; ecu pinout is correct, but pcmtuner pcmflash shows failure, I'm using module 71 tc1766 FLASH… So, any clue? Solution: There are 2 types of pinout for med17.4. Try both. see which one works. Bosch MEDV174 IROM TC1766 EGPT PSA Pinout Feedback: Solved. Mine work with type 1 and module 71 TC1766.
