PCMtuner-tool

  Problem: I have a problem with pcmtuner flash . I can read but can't write EDC17c84 via OBD. Solution: Remove ecu and read/write again on bench module 71. If car not start by module 71 bench mode, the problem can be the checksum. After fixing checksums, it works on bench module 71. If not working, try unplug T° engine sensor and try if not succes Wait until T°10 and retry.

  Problem: How to solve this please? After installation and activation of both pcmtuner and pcmtuner flash (a new tool). I have no response when trying to open pcm flash. Error process has exited. Solution: Reinstall with no antivirus and firewall, try open PCMtuner flash directly, you will also get this error IF the ecu is not supported or linked from your pcmtuner app. If it's windows 10 the real-time antivirus is activated every time you restart the system.

 What is the difference between foxflash and pcmtuner? I know Foxflash can do a lot more then PCMTuner, but is there anything PCMTuner can do that Foxflash can't? They both serve the same purpose. PCMTuner flash consists of 60 modules for individual ECUS mostly OBD. It can do BSL and bench on a select Few. Foxflash covers Hundreds of Manufacturer ECU's and TCU's in OBD, BENCH, BOOT, BDM/JTAG. It is a much more powerful tool. They both are good tools but in different ways. PCMtuner has a lot of obd modules for Asian etc, but cannot do any BDM Jtag work or Agri and plant like foxflash. Foxflash has more new protocols and with the possibility of reading TCUs than pcm. But it does not have tuner account and tuning service for tuners. Each tool has their own capabilities, no all tools can do read/write perfectly. Buy both, PCMtuner has very good coverage but can only do certain bench jobs (edc17/med17/mev17) and limited boot. It depends on your needs, no one to

 Used today PCMTuner with Forscan as J2354 interface, learned new keys on a 2011 Ford fiesta, working very good, fast connection, everything worked just great! i will gona try with fjds/frds also in couple days.

 Here are some frequently asked questions about the FoxFlash , KT200 and PCMTuner : 1). What's the difference between KT200 and FoxFlash? 2). What is difference between pcmtuner and FoxFlash? 3). What does it do differently or what advantages? iECUTOOL.COM solution: 1) FoxFlash vs KT200 Product quality foxFlash:use good materials and some good Aluminum produce. KT200: use some processing aluminum products and rubber. Whats the version foxFlash is full master version and high level version,all protocols was actived KT200 gots two version, if get auto version, need to pay to update to full version Online support foxFlash have online support (online account, facebook group support ,WinOLS damaos(need help user creat account get it ) . KT200 have online support (facebook group support ,WinOLS damaos) Price foxFlash good price get the full master, full version KT200 full version costs more than Foxflash Work mode foxFlash can work online and offline KT200 just

 Question: I've been looking at KT200 and the pcmtuner . Is the kt200 considerably better or just better, more stable than pcm tuner? Answer: They both are good tools but in different ways. PCMtuner has a lot of obd modules for Asian etc, but cannot do any BDM Jtag work or Agri and plant like KT200 . KT200 has more new protocols and with the possibility of reading TCUs than pcm. But it does not have tuner account and tuning service for tuners. pcm tuner has better technical support and no annual fee. kt200 uses an annual subscription model for updates. Each tool has their own capabilities, no all tools can do read/write perfectly. Buy both, PCMtuner has very good coverage but can only do certain bench jobs (edc17/med17/mev17) and limited boot. It depends on your needs, no one tool is ever enough. The 2 machines are complemented. The more tools, the more work you can perform.

 What's the difference between pcmtuner, fetrotech tool and MPM ecu tuning tool? This is frequently asked by iecutool.com customers. Here's the clue. PCMTuner App PCMTuner App is an application that can control pcmtuner flash, fetrotech, MPM and more feature plugins from pcmtuner team. The appliation provides instructions and wiring diagrams. PCMTuner : PCMtuner is a customized read-write device specially used for vehicle engine control system (ECU) and transmission control system (TCU). PCMTuner flash is based on pcm-flash which comes with 67 modules . The smart USB dongle stores the protocols. The dongle can be purchased alone (to work with ktmbench, openport, SM2 Pro). PCMTuner vs PCMTuner dongle Pcmtuner is a complete hardware device with future expandability linked to the pcmtuner software suite. The dongle allows you to run the pcm flash modules etc PCMtuner flash can read and write ECU via OBD, Bench, Boot, OBDvr modes. Fetrotech Tool: This is an a

 In order to get your pcmtuner and fetrotech tool activated as soon as possible, please follow the instruction below. 1). PCMTuner Activation : Provide BOTH license key + device ID to info@tuner-box.com or iecutool.com customer service The device ID can be found on the back of the device Providing a license key only will not receive an activation. Fake pcmtuner does not have a device ID. It will not be activated by pcmtuner technician. 2). PCMTuner Dongle Activation Provide an image of your pcmtuner dongle and package + license key to info@tuner-box.com or iecutool.com customer service 3). VZ-performance Activation: VZ tuner account is no longer automatically activated in 24 hours !!! Before activating VZ account, check if your pcmtuner/dongle has been activated. If you get your device activated and registered, your VZ account is activated at the same time. If the device is activated but not yet registered with an email, provide pcmtuner serial number + r

 SID208 PSA can all be done with pcmtuner module 60 . Follow instructions here: 1. Read password directly in the car via OBD and safe. 2. Open ecu and according to the scheme two resistors solder 1 k-ohm. 3. Then read in BSL mode and unlock ecu. 4. Desolder resistors and mount ecu in the car, then write in normal mode PCMTuner PSA SID208 Boot Pinout Ford PSA SID208 SID209 BSL Guide with PCMTuner

 Question: Mazda CX-5 2.2 diesel 2018, 150HP …can read with PCMTuner ? I don't see any info in the instructions. Solution: It reads via OBD. OBD does not have instructions. Find your OBD port. And read with pcm tuner via module 10. Also if starline alarm fitted disconnect alarm module behind dash. If your ecu is on table and not in car, then as the tuner you will have to find correct pinouts. http://www.pcmtuner.org/pcmtuner-mazda-denso-ecu-pinout-obd-and-bench/ http://www.pcmtuner.org/pcmtuner-mazda-rf7n-ecu-pinout/

 Nissan qashqai 2013 Edc17c42 Dtc off Read and write with pcmtuner without problem. Using external Laboratory power supply, 12.4v. select the module 71 TC1767 for read flash and eeprom. pcmtuner app will show you wiring diagram and instructions.

  Question: I try to write a modified file on pcmtuner module 71 and ask me to confirm the checksum. Normally it said in the module 71 can do flash checksum. But why is ask for continue if the checksum is not correct? Good file blue symbol and Yellow modified file. Solution: "Checksum is correct."= checksum was ok "Checksum was corrected." = the other wasnt so software corrected it. pcmtuner flash corrected the checksum and you can procceed. Press OK to correct checksum. One checksum was ok, the other wasnt so software corrected it. When software is modified always it needs to fix checksum. If you write the original no need to fix checksum!

  Problem: Can I read Nissan March 2016 1.6 petrol engine ME 17.9.55 ecu with pcmtuner ? I tried module 71 but it is failing. Solution: pcmtuner ME17.9.55 ecu pinout use labels not colors. try GPT0 and GPT1 on pins marked yellow (any order may swap later), but please power everything off and restart PCM tuner and app before trying to make ID, if not ID then swap GTP wires and try again. If still failed, open ecu and check what TC17xx fitted, power on bottom row different and of course GPTs read password after ID to as this may not work like EDC17/MED17 automatic password.

  Problem: What problem? I try to read Mercedes C320cdi edc17cp01 ecu with pcm tuner. Skipping when I upload a modified file to pcmtuner , the ignition turns on and off continuously. Solution: Calibration area so skips other parts of memory as informed, its normal, the problem is your file. Between 14000–1FFFF is otp it's the Service area. In module 71 it skips OTP area as this area is the part that can only be read but never rewritten. Ask someone else to do your file remap. You can Set this in settings when a complete write is Necessary. You can find settings when you click on write a settings screen opens.

 Tested pcmtuner hardware 100 working on Jaguar Land rover JLR SDD. Using pcmtuner as Scanmatik passthru. Detected as SM2 USB device. Range rover Sport Bcm coding and reflash !!! it's possible make it work offline. You just need a usb flash and another computer. Also tested on a Discovery L319.

  PCMTuner flash can't read Opel edc17c59 ecu? Error attached: Solution: If it cannot other ECU on bench, replace transistor it should be ok after. If just on this ecu. Check wiring diagram and make sure connect it correctly Bosch EDC17C59 ECU pinout lots of C59 done and works perfectly.

 Here comes the problem: Finally got my edc17c60 writing with pcmtuner flash , but car doesn't start after 2nd attempt. Citoren C4 1.6 blue HDi 2016 the first reading was made in bench module 71. Solution: PSA EDC17C60 is tprot. You need to do manual tprot change to file before writing https://www.iecutool.com/service/pcmtuner-psa-edc17c50-manual-tprot-off.html You have to Tprot Ori file too if you want to write back. Feedback: Solved. Wrote original file and wrote back the tuned file with checked use optimizations.

 Question before entering: How to build DSG connector for EE & flash read/ write on PCMtuner ? I have built connector as in photos, but it’s not easy to find relay with 720 ohm resistance, i used 320 ohm relay coil resistance to enable L- line power auto control, does it affect the PCM tuner unit? I will try Tactrix open port, also is it necessary to add 120 ohm on parallel for can L&H . Solution: Your pcmtuner has this control circuitry already hence the message would you like to control l line automatically!! The only requirement for dsg on bench is to provide 1 X 12v permanent power hence using a breakout cable ( godiag gt107 gearbox adapter ). There are 2 ways to bulid connectors to read DSG gearbox mirco and eeprom for cloning purposes: 1st method is to read on bench using external power supply (gt107) and it works perftectly. gt107 breakout of gt105 has switched and permanents. With gt107 you need to be able to switch power manually, gt107 has switch. Y

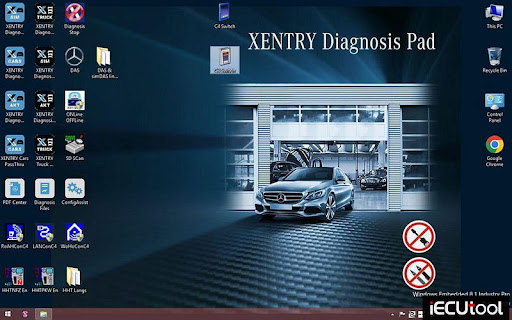

 Has anyone tested pcmtuner on xentry software for Mercedes Benz? Yes, PCMTuner tested working as a J2534 passthru device for Mercedes. You need the version of software called XENTRY Pass Thru. pcm tuner does not work with MB SD C4/C5 standard OpenShell version (XDOS). But w203 and w211 older not all works because they need a multiplexer. 2005 upper all works like with tactrix openpoprt 2.0. People has tested it but with older cars not connect with all modules. This is a known issue with j2534 passthru. J2534 doesn't work with older k line cars full stop. The passthru cannot use Vediamo 5 as well, only version 5 because vediamo 5 doesn't support Passthru. For 2005- up Mercedes normal troubleshooting and diagnosis, though, it rocks. Read also: Can PCMTuner be Used as Passthru J2534 for ODIS Xentry GDS etc?

 Here is the pinout for Ford Delphi DCM6.1 ECU with pcmtuner module 53 on the bench. Module 63 instruction http://www.pcmtuner.org/pcmtuner-module-53-infineon-tricore-bsl-operation/
