FormulaFlash Reads BMW MEVD17.2.3 Flash and EEPROM

 Reading Bosch MEVD17.2.3 TC1793 full Flash + EEPROM via FormulaFlash programmer on bench successfully.

Manufacturer: Bosch

Model: BMW 218i F45 2016

ECU: Bosch MEVD17.2.3

Microcontroller (MCU): Infineon Tricore TC1793 (BGA package)

Application: BMW and Mini turbo/naturally aspirated gasoline engines (F-series platforms)

Mode: Bench

Read eeprom & flash ok.

Write eeprom & flash ok.

Checksum correction with Formula Flash.

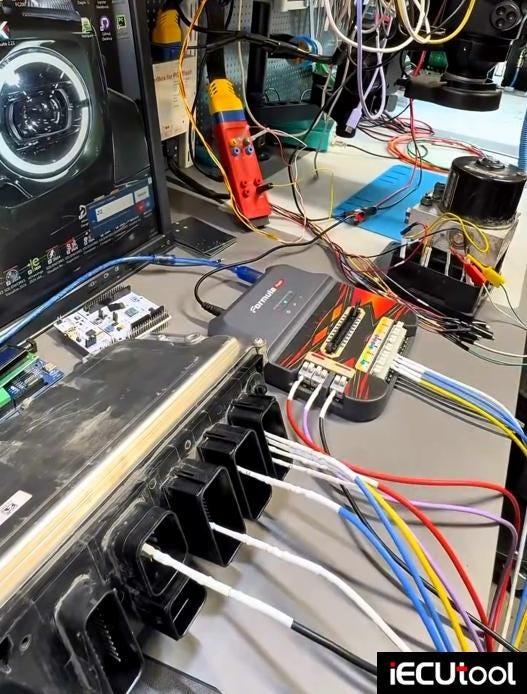

FormulaFlash Read BMW MEVD17.2.3 ECU on Bench

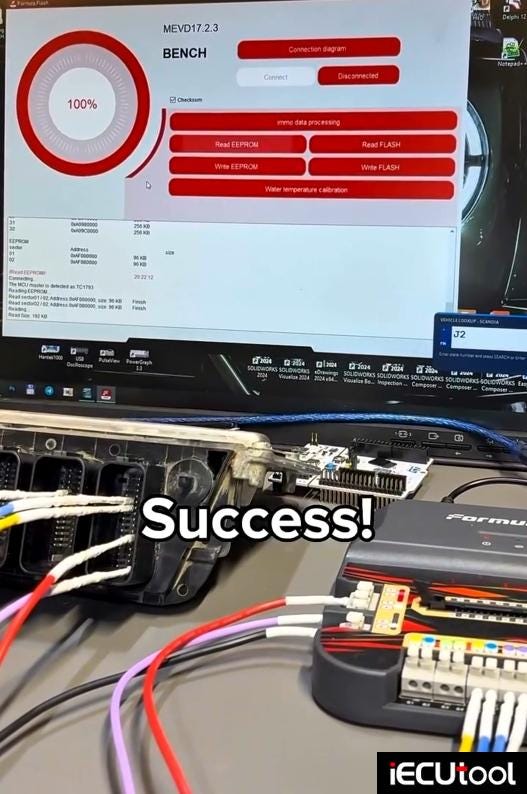

FormulaFlash Read BMW MEVD17.2.3 ECU on Bench

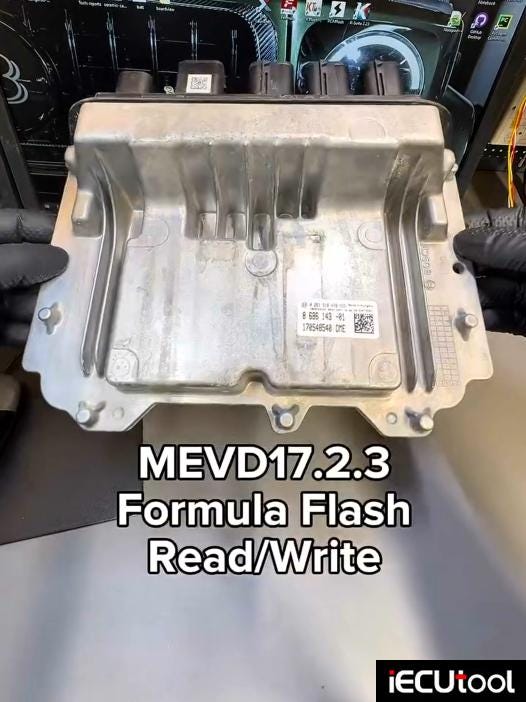

FormulaFlash Read BMW MEVD17.2.3 ECU on Bench

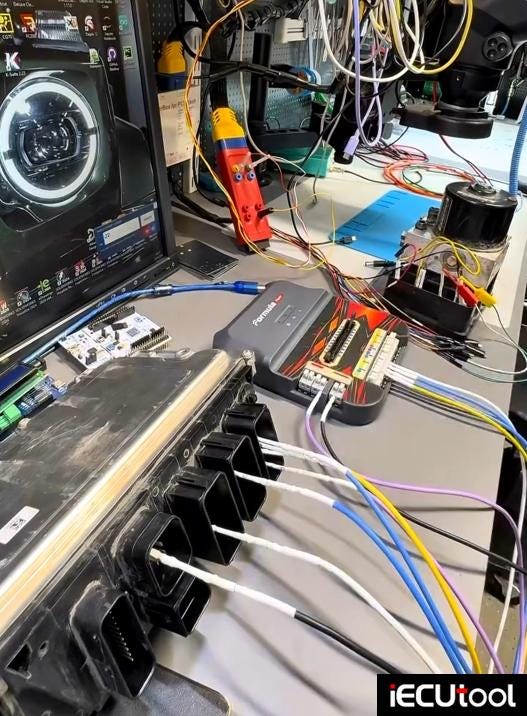

FormulaFlash Read BMW MEVD17.2.3 ECU on Bench

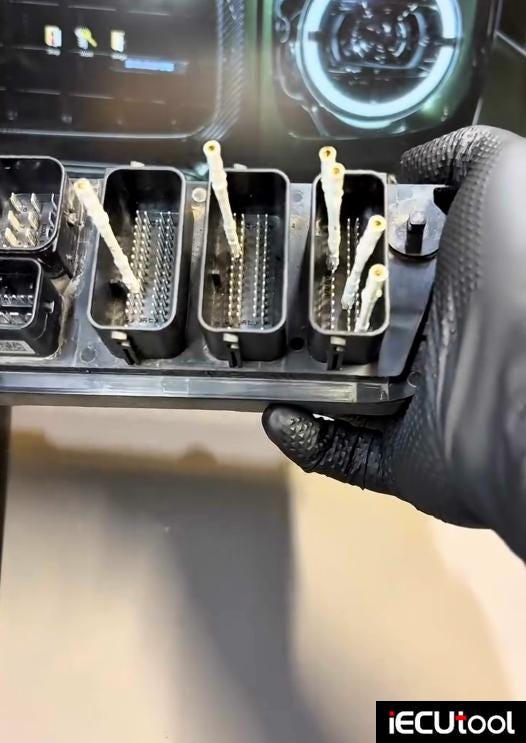

FormulaFlash Read BMW MEVD17.2.3 ECU on Bench

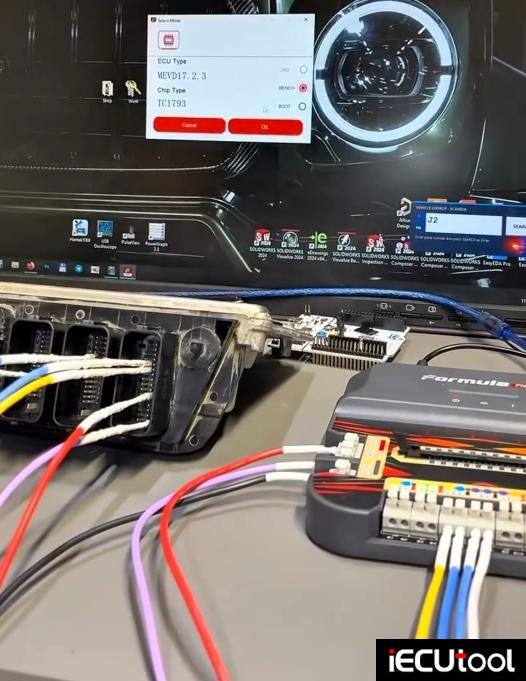

FormulaFlash Read BMW MEVD17.2.3 ECU on Bench
