How to Upload Diagnostic Logs in OBDSTAR ECU Master

 If OBDSTAR ECU Master programmer fails to read the ECU, TCU, or BCM, or has other faults, you can upload the log data for OBDSTAR engineers to analyze.

Uploading log data is simple — just follow these steps.

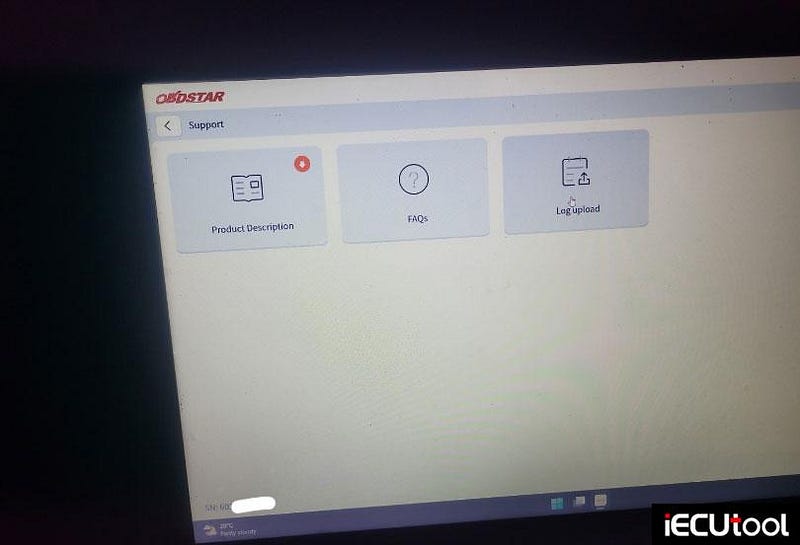

Go to Support section.

Choose Log Upload function.


How to Upload Log Data in OBDSTAR ECU Master

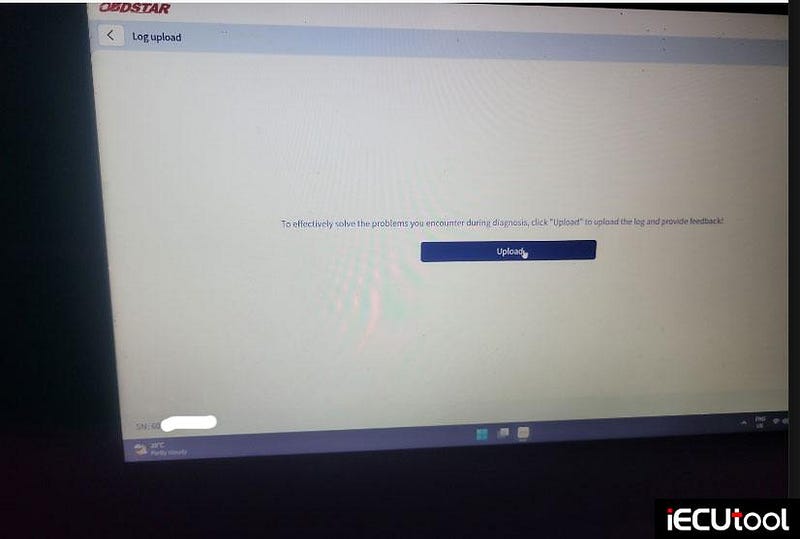

Hit Upload and select the log data you need to report to OBDSTAR.


How to Upload Log Data in OBDSTAR ECU Master
