How to Read Ford Kuga DCM6.1 ECU with Foxflash OBD

 Read and write Ford Kuga DCM6.1 ECU with Foxflash programmer by OBD successfully.

Ford Kuga 2016, 2.0, 110kw,

ECU: DCM6.1

Mode: OBD
HW: DS71–12B684-XB
Read by foxflash.

Checksum correction with foxflash.

Write by foxflash.

A short story. A quick internet search for the ecu identification numbers gave me a result that the ecu was DCM3.5 (140hp) Wrong… It wasn’t!!! Foxflash did the ID even I selected DCM3.5 , I received the error SK2, Error SilentKey when reading. After I selected the correct ecu DCM6.1 (150hp) everything was fine.

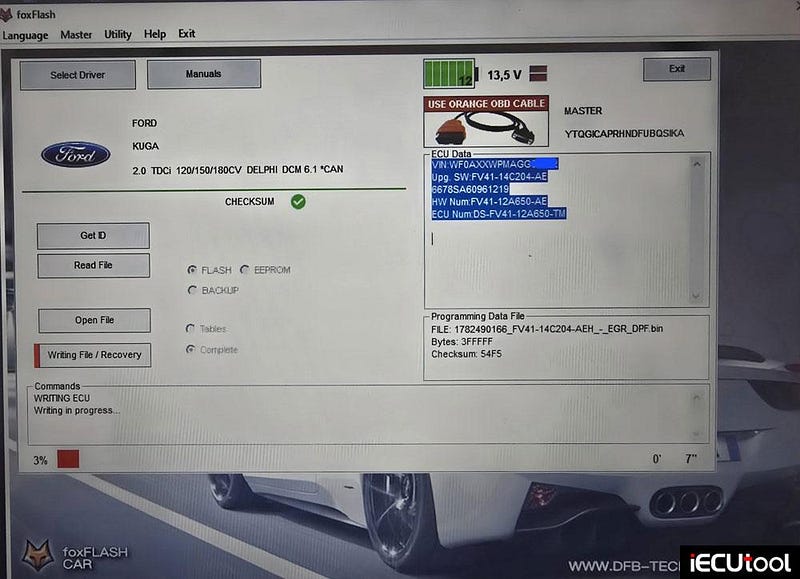

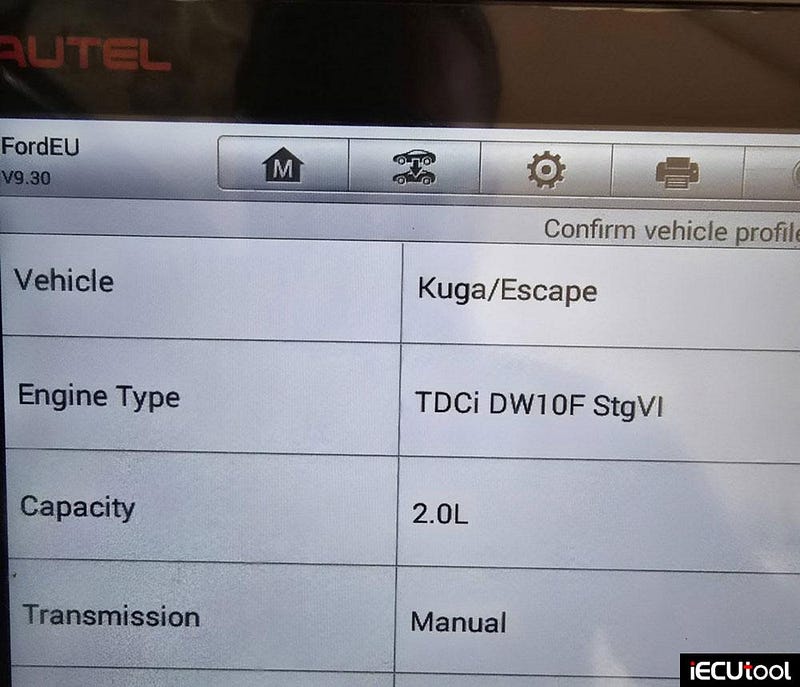

Foxflash Read and Write Ford Kuga DCM6.1 ECU via OBD

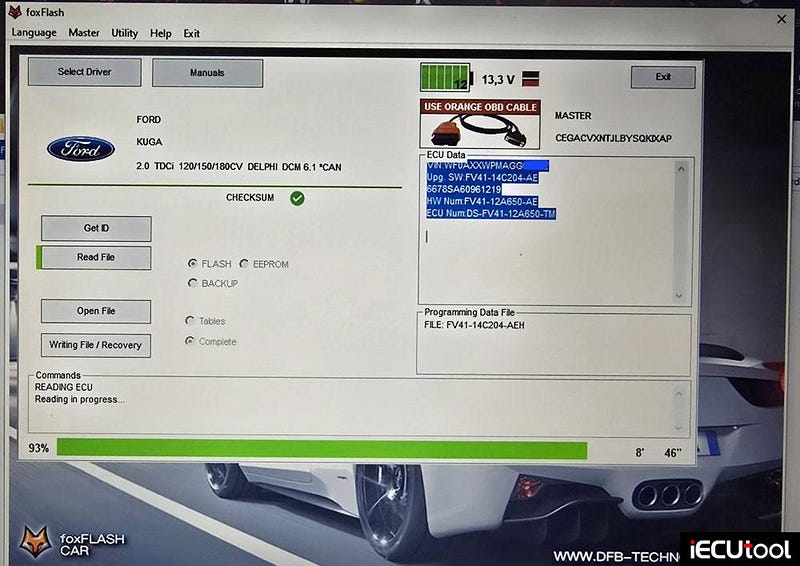

Foxflash Read and Write Ford Kuga DCM6.1 ECU via OBD

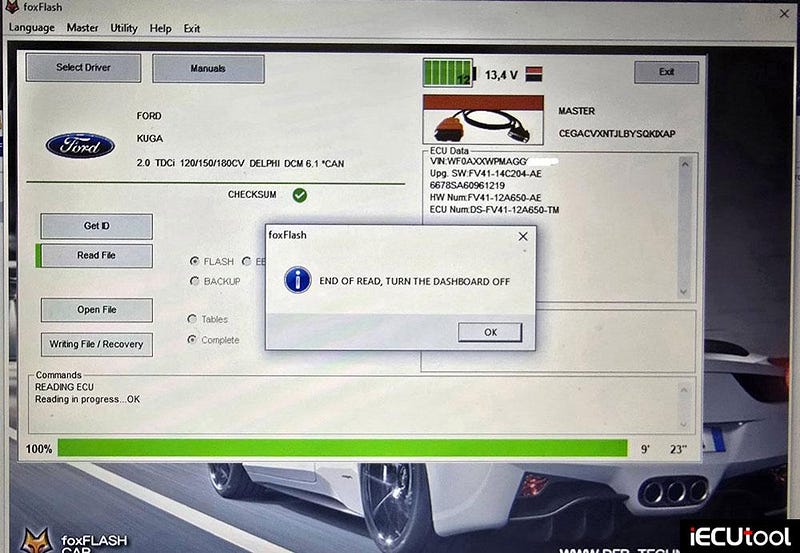

Foxflash Read and Write Ford Kuga DCM6.1 ECU via OBD
