How to Clone VW EDC16U1 ECU with FormulaFlash on Bench

 Bosch EDC16U ECU Cloning with FormulaFlash programmer successfully

Read eeprom & flash data from the original ECU on bench mode.

Connect a donor ECU with Formula Flash, back up data for the donor ECU.

Then write original data to the donor ECU.

ECU cloning is done on bench mode.

Checksum correction by Formulaflash.

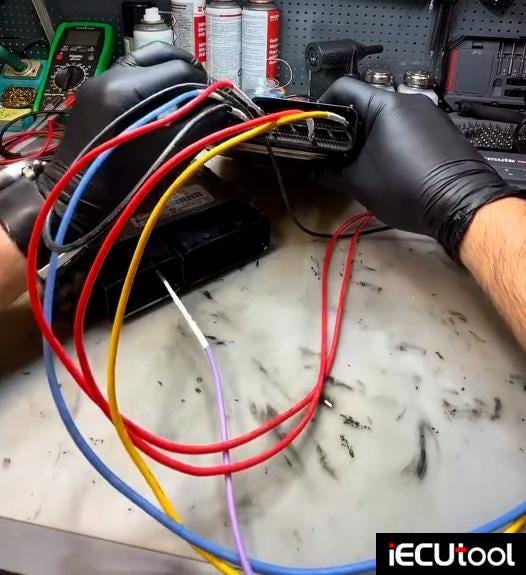

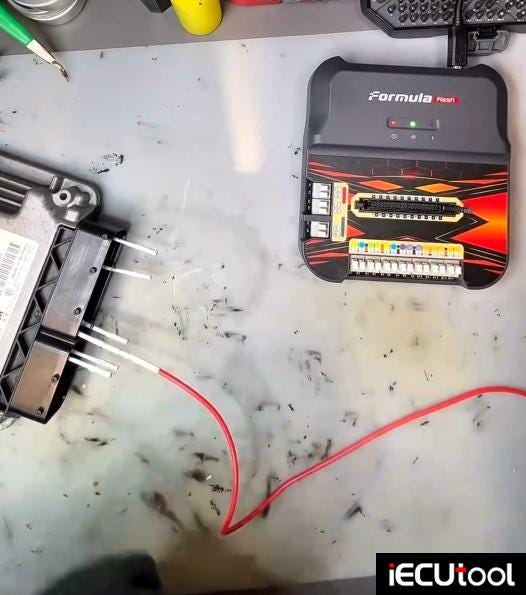

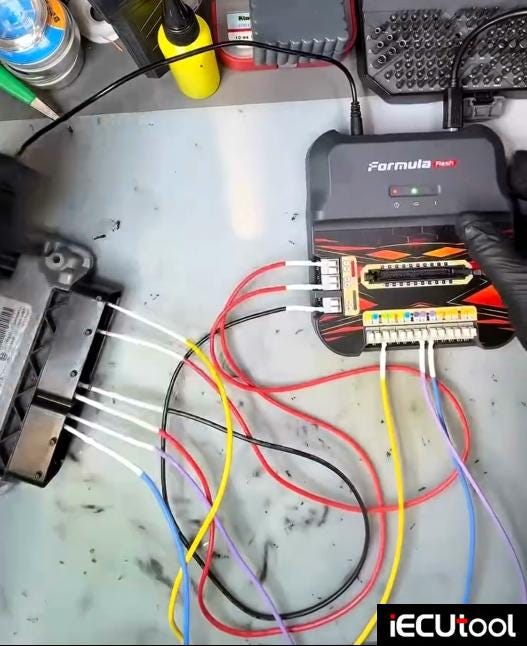

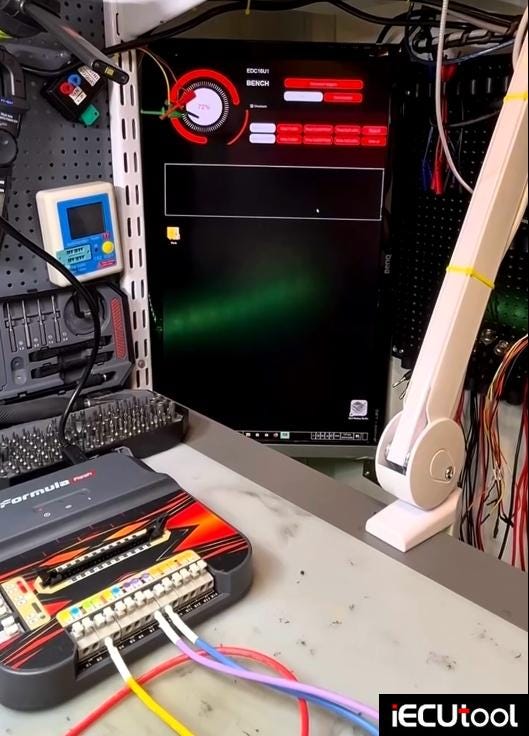

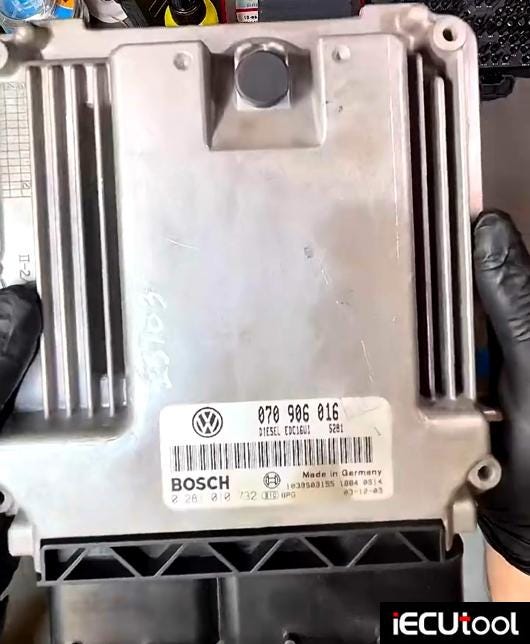

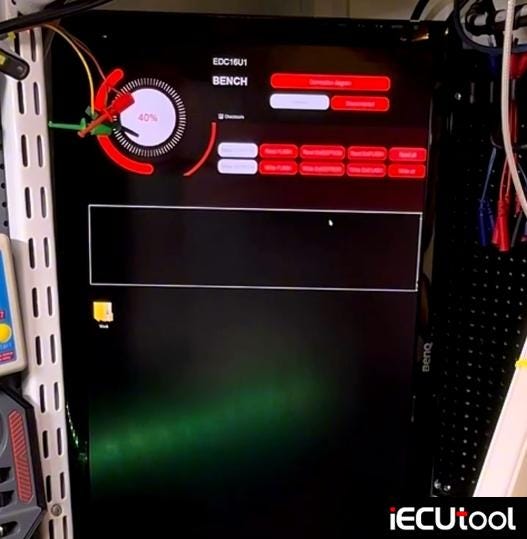

FormulaFlash Clone VW EDC16U1 ECU on Bench
