Foxflash Pinout to Mercedes SIEMENS VDO MSM2.0

 Foxflash programmer will read and write Mercedes Benz gasoline SIEMENS VDO MSM2.0 ECU on bench.

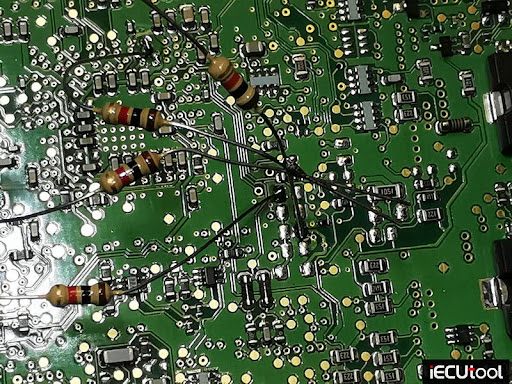

Here is the fox flash pinout to MSM 2.0.

Foxflash Pinout to Mercedes SIEMENS VDO MSM2.0

Select driver

Mercedes

Siemens ECUS

1.4/1.6 Siemends VDO MSM 2.0 FULL SYSTEM

If old and new ecu have read flash and eeprom without problem. Write not work with foxflash. Have error. Cannot write any file as shown image below:

Foxflash Pinout to Mercedes SIEMENS VDO MSM2.0

After read flash/eprom — Disconnect ecu and restart software (unplug foxflash) — restart Then connect again, Write flash, Also try lower power only need 13v on this ecu.
