Flex Boot Glitch Solution for Peugeot 3008 MD1CS003

 Magic Motorsport Flex read and write Peugeot 3008 year 2021 Bosch MD1CS003 ECU successfully.

Unlock MD1CS003 locked ECU boot glitch mode.

Solder wires to the E-port directly without using the FLX 4.1 cable.

Then read and write ECU on bench after unlocking.

Works fine. Car starts without problem.

Images attached:

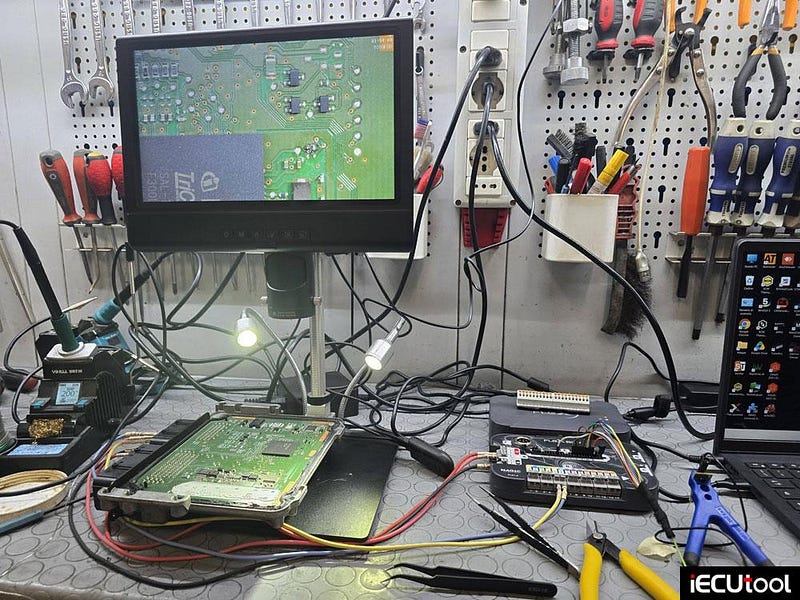

Flex Boot Glitch Unlock Peugeot 3008 MD1CS003 ECU

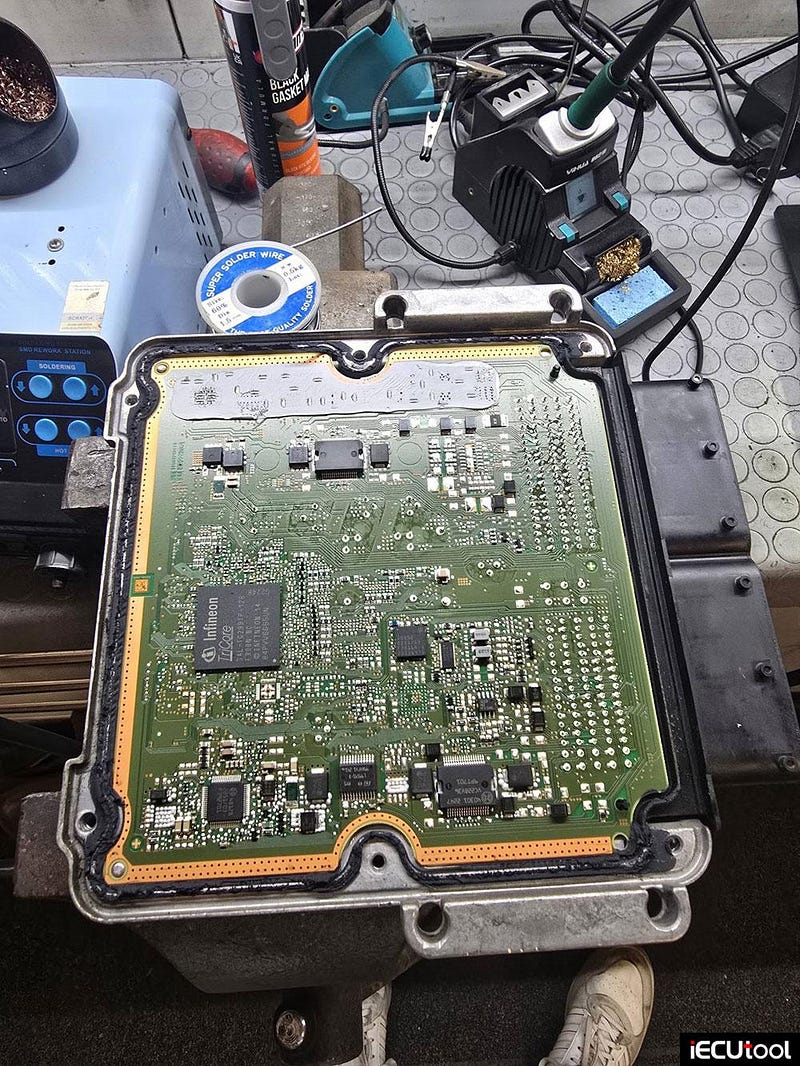

Flex Boot Glitch Unlock Peugeot 3008 MD1CS003 ECU

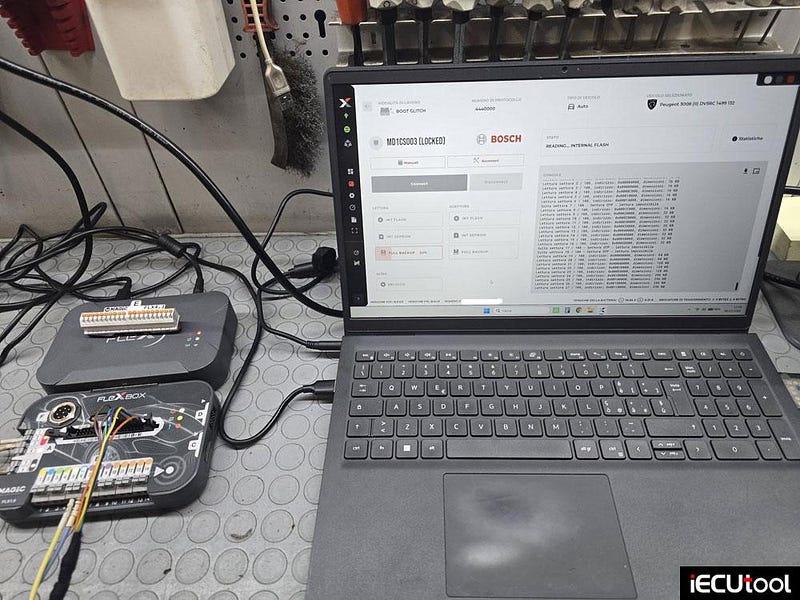

Flex Boot Glitch Unlock Peugeot 3008 MD1CS003 ECU

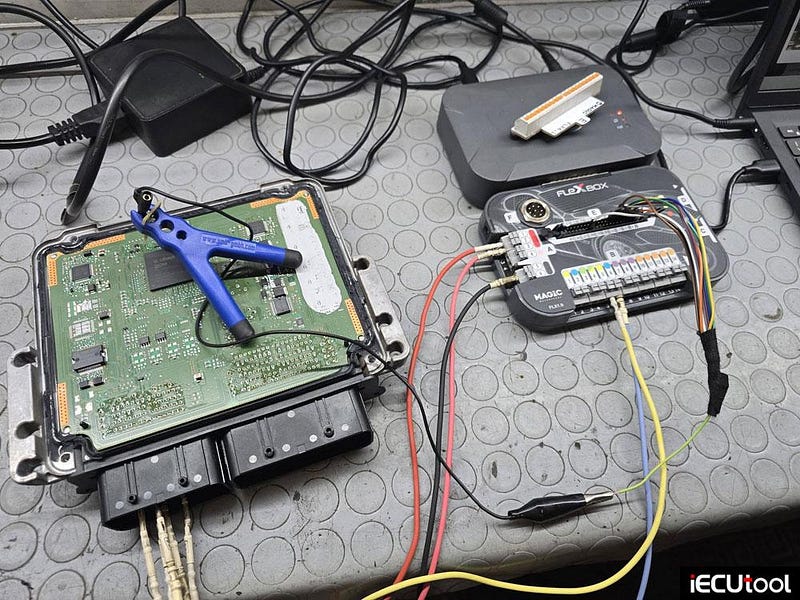

Flex Boot Glitch Unlock Peugeot 3008 MD1CS003 ECU

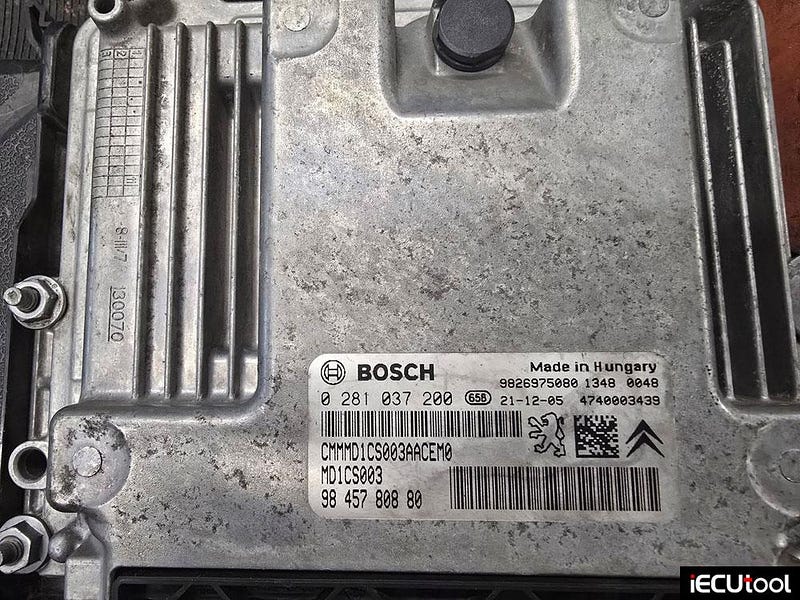

Flex Boot Glitch Unlock Peugeot 3008 MD1CS003 ECU

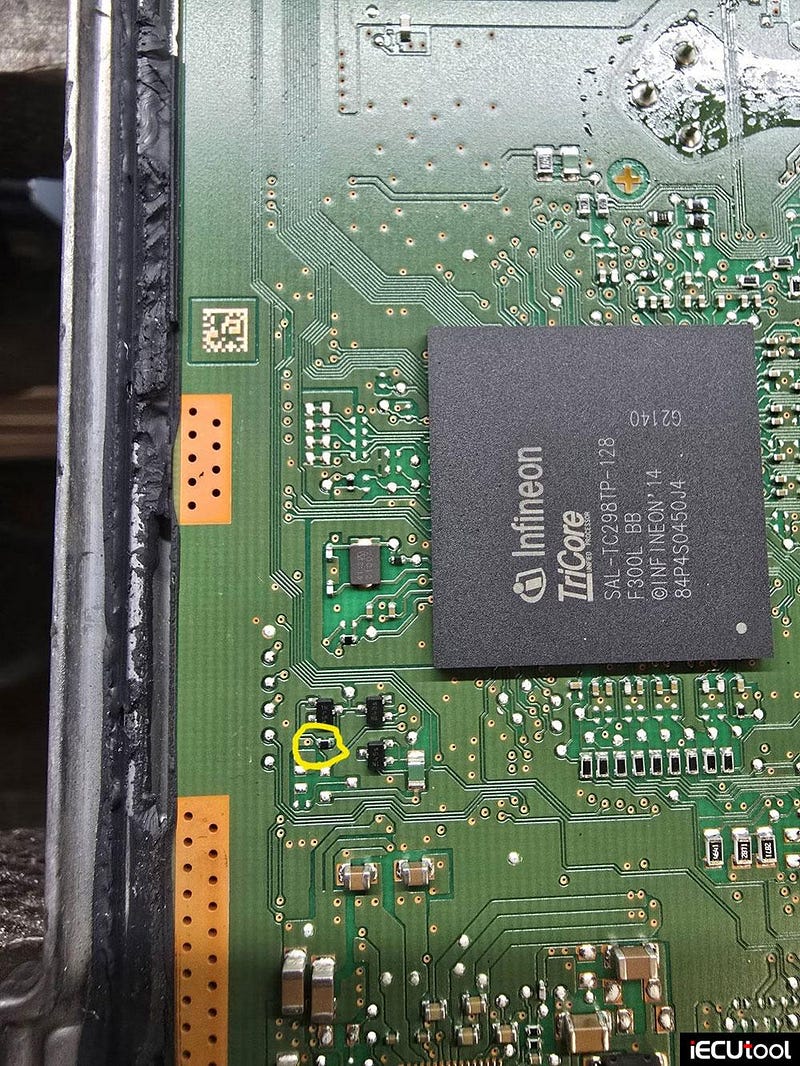

Flex Boot Glitch Unlock Peugeot 3008 MD1CS003 ECU
