Autotuner Unlocks Mercedes W213 MD1CP001 ECU Programming

 Autotuner Mercedes W213 ECU chip tuning review from a professional tuners:

Vehicle

  • 2017 Mercedes-Benz E220d AMG Line
  • 2.0 CDI OM654
  • 9G-Tronic Automatic
  • 194 BHP
  • Bosch MD1CP001 (SPC5777M)

This is Mercedes’ Bosch MD1CP001, built around the SPC5777M TriCore processor. One of the most heavily protected ECUs fitted to the W213 E-Class, designed specifically to prevent unauthorised calibration changes.
Until recently, if you wanted to modify one of these, it meant removing the ECU, opening it, wiring directly to the PCB and carrying out a full boot operation.

He took it a step further.
This 2017 Mercedes-Benz E220d AMG Line 9G-Tronic arrived requiring multiple software solutions after repeated DPF regeneration issues.
Rather than replacing expensive emissions components that had already reached the end of their service life, the owner opted for a complete software calibration package designed around reliability and economy.
But before any calibration could even begin…
The ECU itself had to be unlocked.
Unlike older Bosch ECUs, the MD1CP001 cannot simply be read over OBD.
A secure authentication routine protects the bootloader and encrypted calibration area.

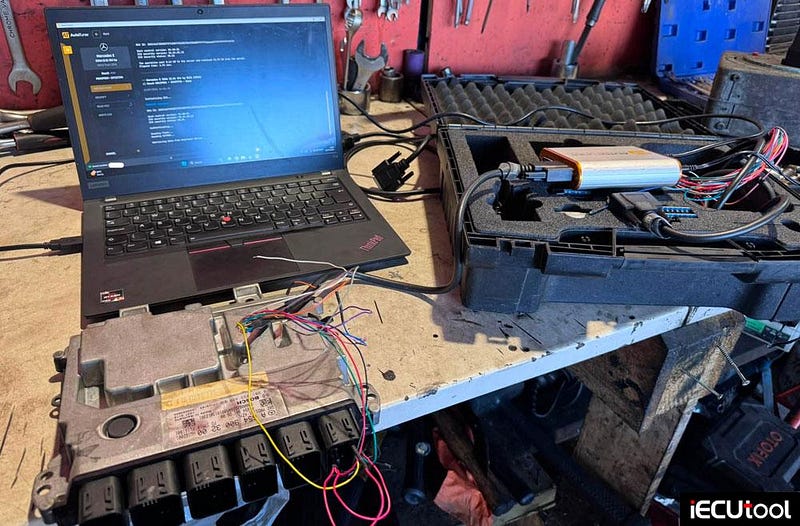

Using the latest AutoTuner protocol, the ECU was removed from the vehicle and connected directly on the bench.

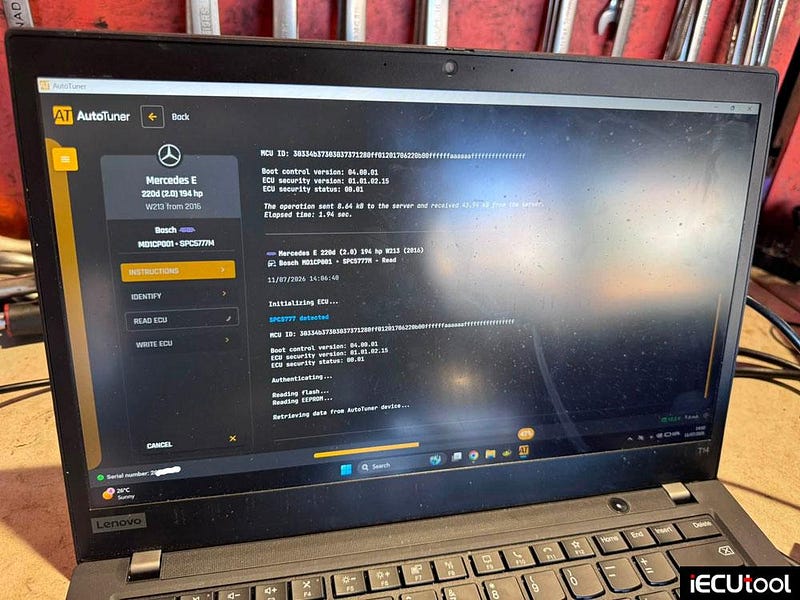

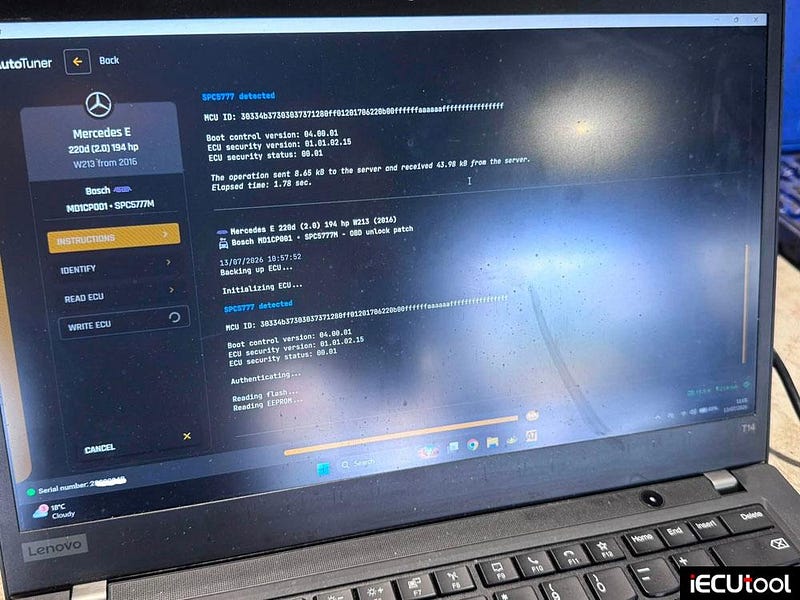

The original software and EEPROM were backed up.
The factory bootloader was authenticated.

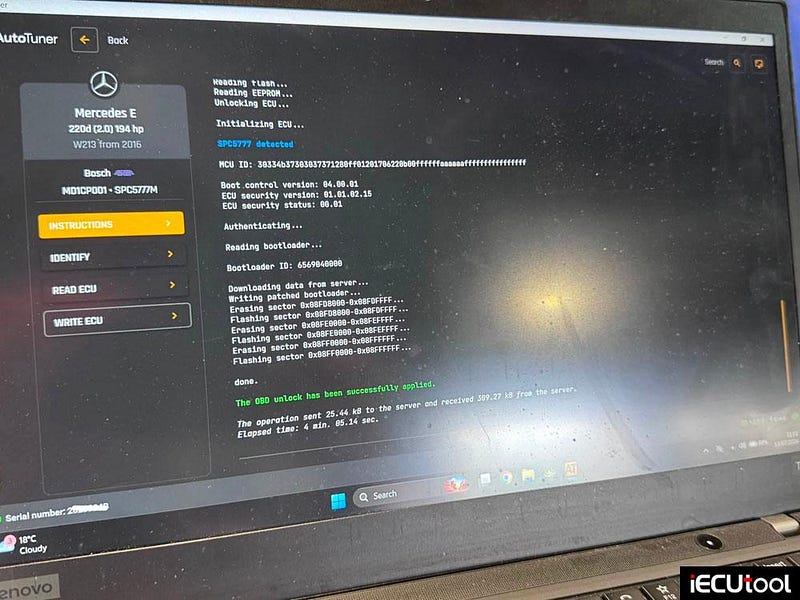

A secure OBD unlock patch was then written into the ECU, modifying the boot sequence while maintaining checksum integrity.
Only after that process could future programming be completed safely through the diagnostic port.

No drilling.
No opening the ECU casing.
No cutting tracks.
No soldering.

Just the correct equipment, the correct protocol and the correct procedure.
With the ECU now unlocked, we carried out a complete Eco calibration.
DPF/FAP Solution
EGR Solution
AdBlue / SCR Solution

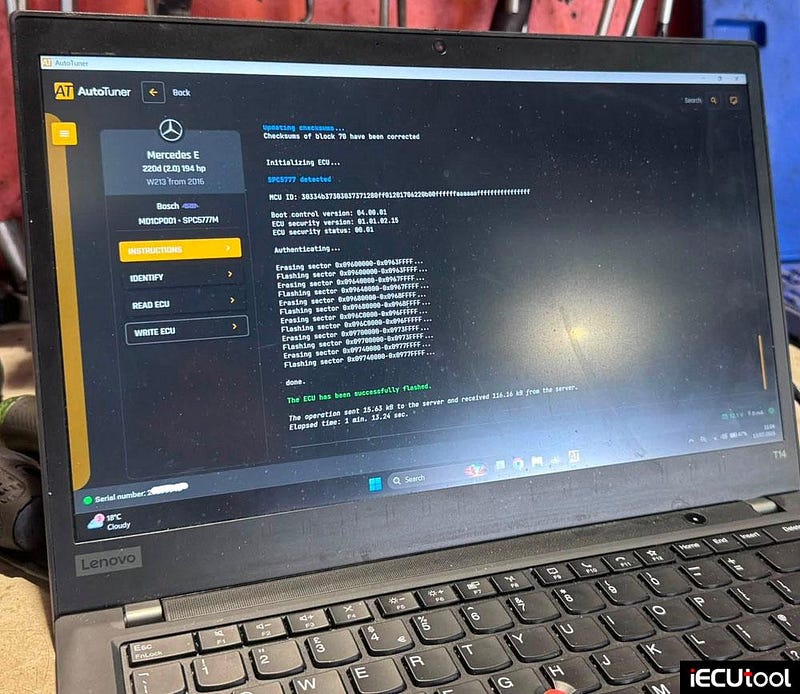

The software was rebuilt, checksums validated and flashed successfully before carrying out final verification.
Exactly how it should be done.

Software Package

  • ECO Calibration
  • DPF / FAP Solution
  • EGR Solution
  • AdBlue / SCR Solution

Estimated fuel economy improvement of up to 10%, depending on driving style and vehicle use.
Modern ECU calibration isn’t about deleting fault codes or taking shortcuts.
It’s about understanding encrypted processors, secure bootloaders, authentication routines and manufacturer protection systems before a single calibration file is ever written.
That’s why the tooling matters.
That’s why the experience matters.
Diagnostics first. Results that last.


Autotuner Read and Write 2017 Mercedes W213 MD1CP001 ECU
Autotuner Read and Write 2017 Mercedes W213 MD1CP001 ECU
Autotuner Read and Write 2017 Mercedes W213 MD1CP001 ECU
Autotuner Read and Write 2017 Mercedes W213 MD1CP001 ECU
Autotuner Read and Write 2017 Mercedes W213 MD1CP001 ECU
