Launch X431 ECU Programmer for Benz EDC17CP46

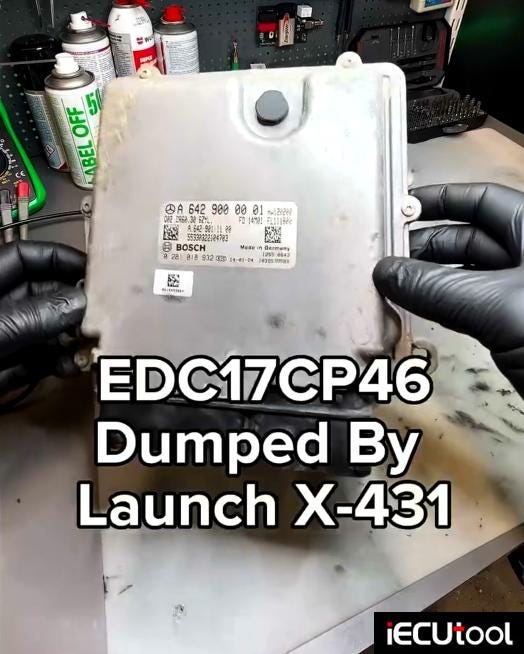

 Quick Mercedes-Benz Bosch EDC17CP46 ECU read using Launch X431 ECU Programmer.

The Bosch EDC17CP46 is a widely used Engine Control Unit (ECU) found in diesel Mercedes-Benz vehicles, particularly those equipped with the OM642 (3.0L V6) and OM651 (2.1L I4) BlueTEC engines.

Bench mode.

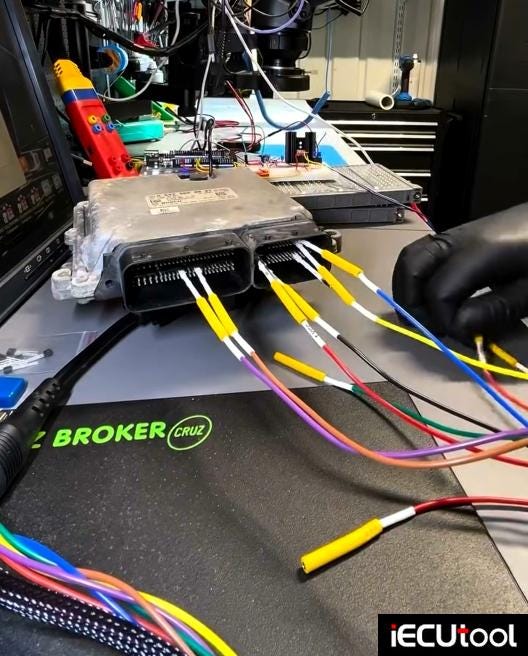

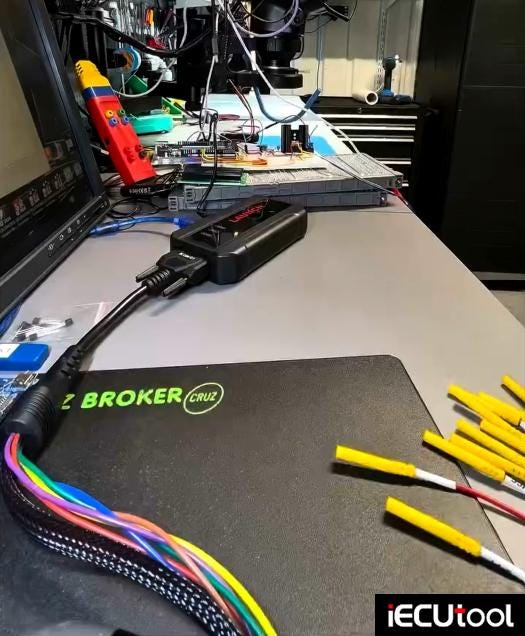

Using X431 ecu programmer bench cable. Easy connection according to the pinout.

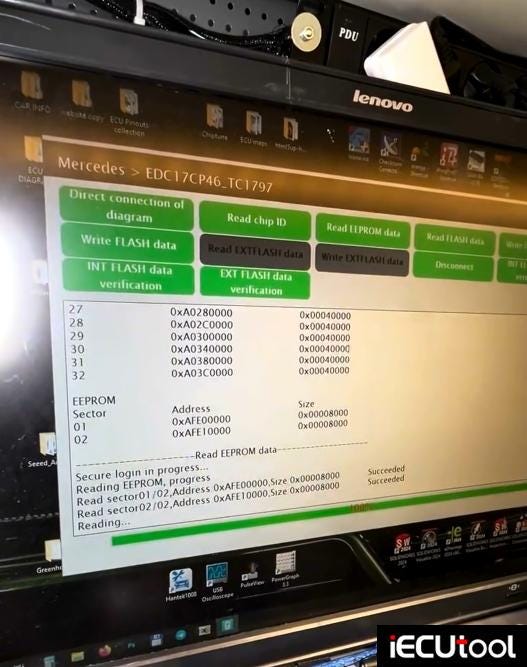

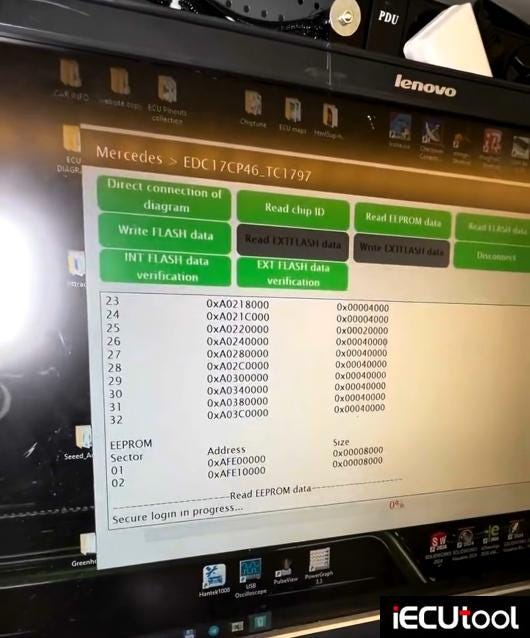

Read EEPROM ok
Read Flash ok.

Check correction with x431 programmer.


Launch X431 ECU Programmer Read and Write Benz EDC17CP46 ECU
Launch X431 ECU Programmer Read and Write Benz EDC17CP46 ECU
Launch X431 ECU Programmer Read and Write Benz EDC17CP46 ECU
Launch X431 ECU Programmer Read and Write Benz EDC17CP46 ECU
Launch X431 ECU Programmer Read and Write Benz EDC17CP46 ECU
Launch X431 ECU Programmer Read and Write Benz EDC17CP46 ECU
