Foxflash Read and Write Peugeot MED17.4 ECU in Boot Mode

 Foxflash read and write PSA MED17.4 ECU successfully.

Peugeot 207 RC 1.6 thp 175 ch MED17.4

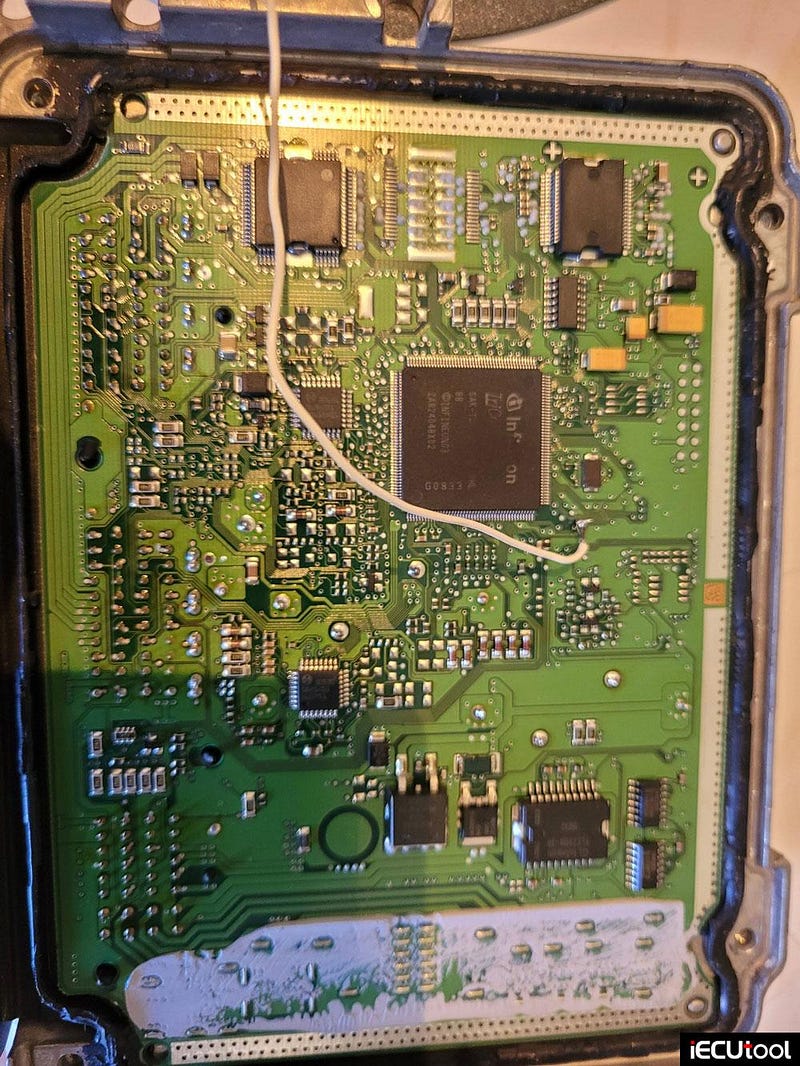

Boot Tricore mode Med17.4 Tc1766
Read/Write ok.
Checksum by foxflash ok.

If need to clone this ECU, go into Boot menu and select tricore cloning, prepare flash, write modded flash, write original eeprom.


Foxflash Read and Write Peugeot MED17.4 ECU in Boot Mode
Foxflash Read and Write Peugeot MED17.4 ECU in Boot Mode
Foxflash Read and Write Peugeot MED17.4 ECU in Boot Mode
Foxflash Read and Write Peugeot MED17.4 ECU in Boot Mode
Foxflash Read and Write Peugeot MED17.4 ECU in Boot Mode
