FormulaFlash Guide_ECU Stage 1 Tuning

 Here iecutool.eu will show how to perform Stage 1 ECU tuning using FormulaFlash programmer without 3rd party software programs.

Note that not all ECUs support the STAGE 1 function. Please refer to the device software for the specific list of supported ECUs. To use this function, ensure that the software is within its subscription.

ECU Example: Hyundai Kefico ME17.9.21.1 ECU Stage 1 remap

Procedure:

Run Formula Flash software.

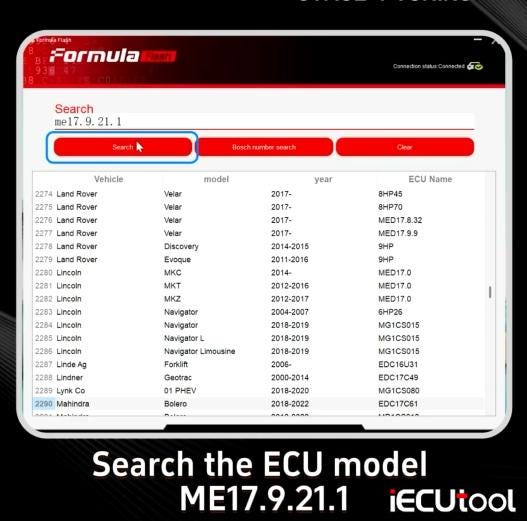

Select Vehicle type and search the ECU model ME17.9.21.1.

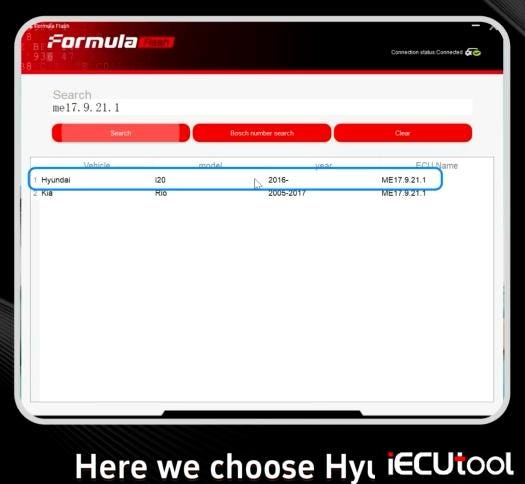

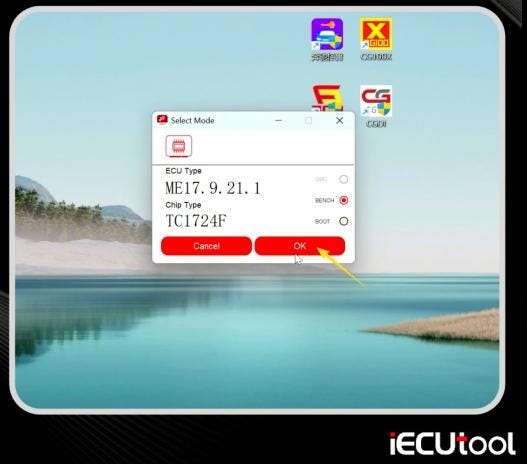

Choose Hyundai and bench mode.


How to Perform ECU Stage 1 Tuning with FormulaFlash
How to Perform ECU Stage 1 Tuning with FormulaFlash
How to Perform ECU Stage 1 Tuning with FormulaFlash

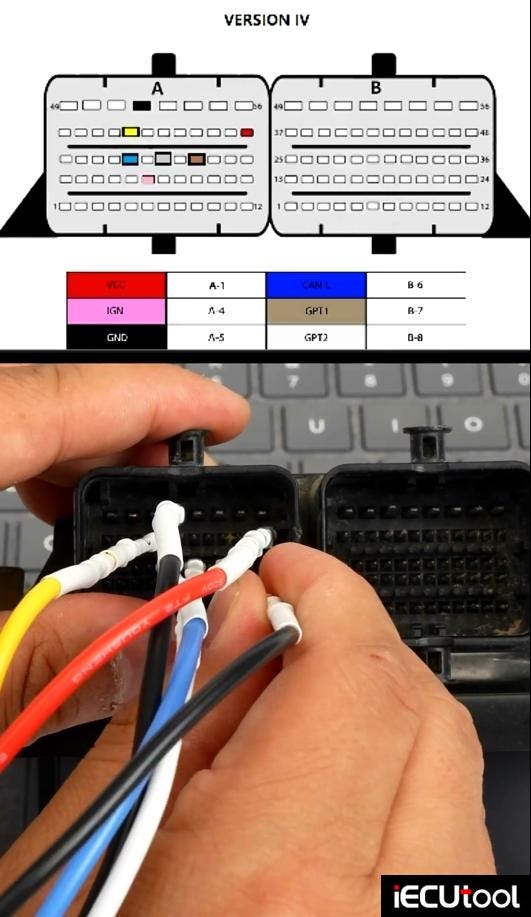

Check the connection diagram.

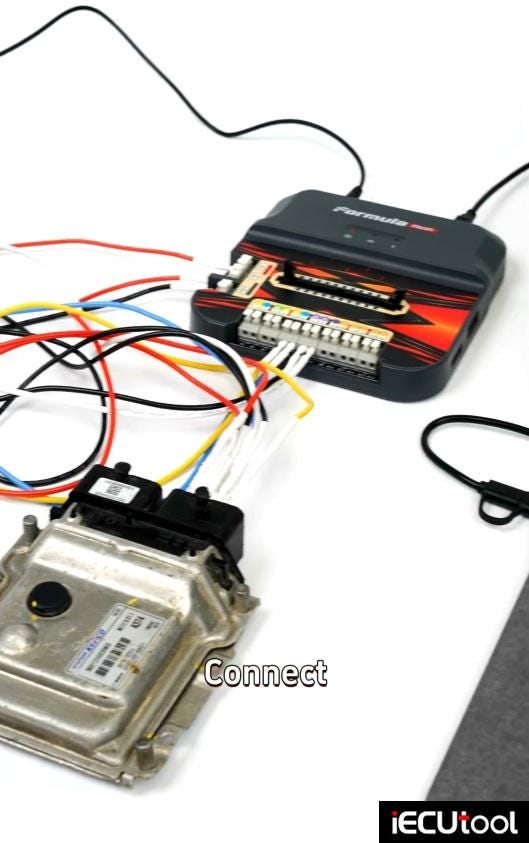

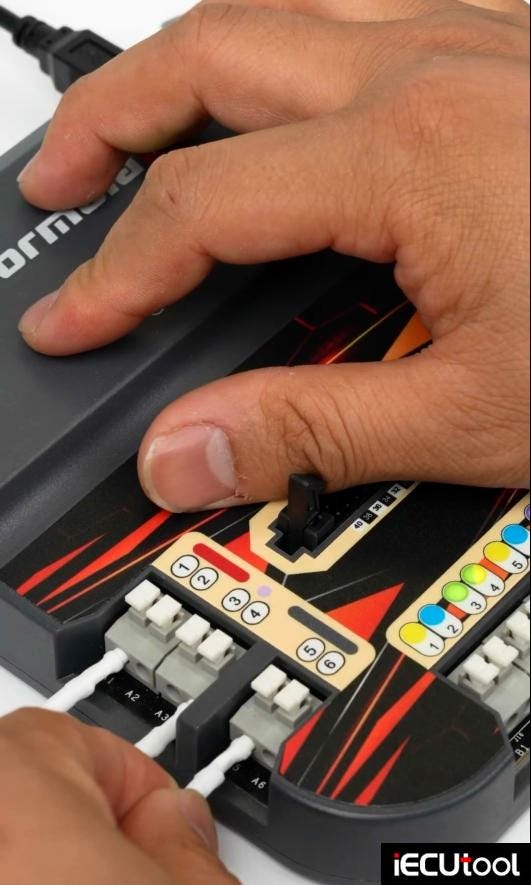

Connect ECU with Formula Flash programmer according to the wiring diagram.


How to Perform ECU Stage 1 Tuning with FormulaFlash
How to Perform ECU Stage 1 Tuning with FormulaFlash
How to Perform ECU Stage 1 Tuning with FormulaFlash

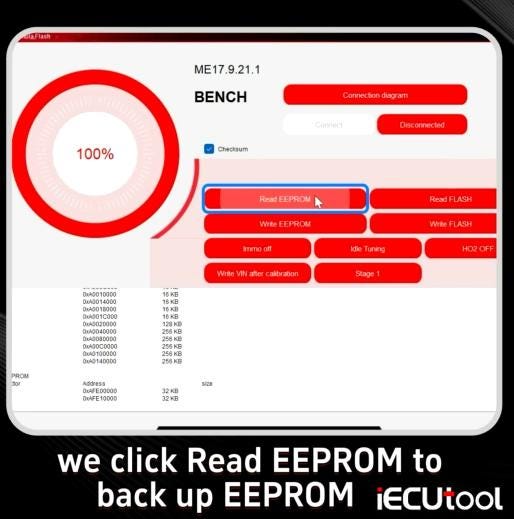

Read EEPROM to back up eeprom file.


How to Perform ECU Stage 1 Tuning with FormulaFlash

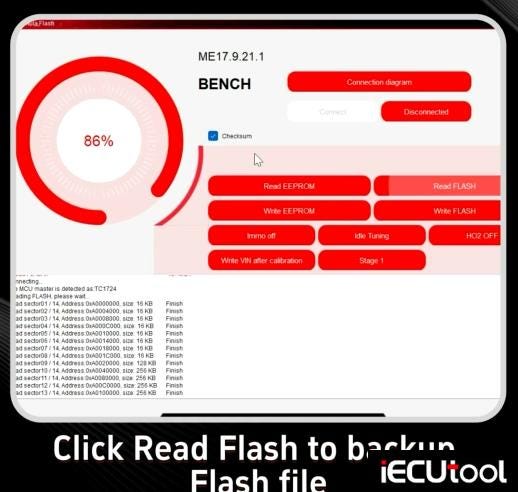

Read Flash to back up Flash file.


How to Perform ECU Stage 1 Tuning with FormulaFlash

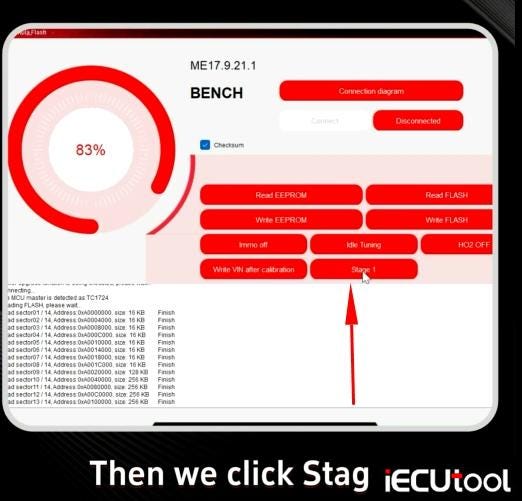

Click Stage 1 function.

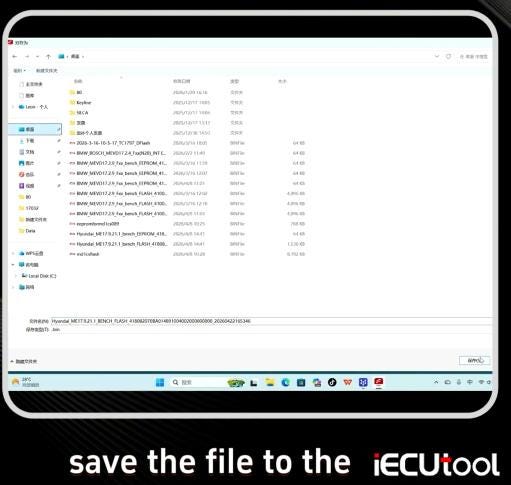

Save Stage 1 file to the desk.


How to Perform ECU Stage 1 Tuning with FormulaFlash
How to Perform ECU Stage 1 Tuning with FormulaFlash

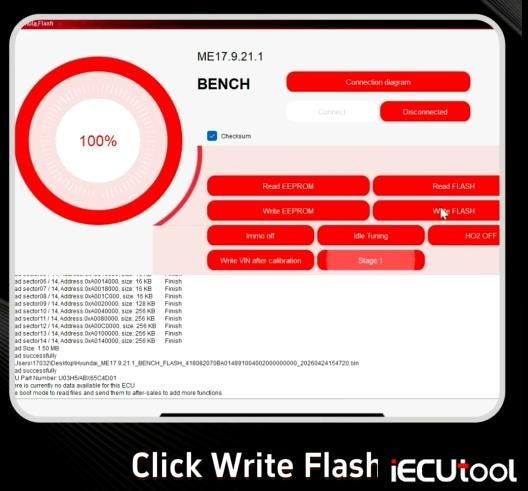

Select Write Flash function.


How to Perform ECU Stage 1 Tuning with FormulaFlash

Upload the Stage1 file we just saved.

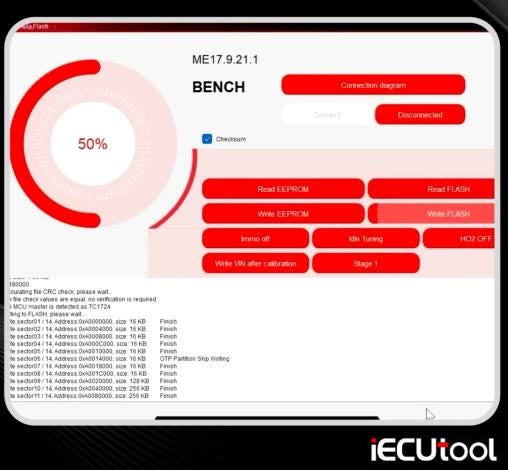

Then write flash and wait for it to complete.


How to Perform ECU Stage 1 Tuning with FormulaFlash

Stage 1 is done.
