Foxflash Failed to Read VAG DL501 Solution: Remains at 0%

 Problem: I’m having trouble reading my DL501 gearbox at foxflash programmer. I have to disconnect and re-connect several times, but the reading remains stuck at 0% . Any solution?


Foxflash Failed to Read VAG DL501 Gearbox Solution
Foxflash Failed to Read VAG DL501 Gearbox Solution

Solution:

You need Bench MFC cable. You need to use multifunction cable that is included in foxflash kit. There is a ignition switch. 12v+ and 12v Ignition. The ignition is under the on/off switch of mfc cable. Pinout directly from device to gearbox doesn’t work.

Press read not get id.
When tool told you put on or off. After put off, CLICK read then put on After..not before.

Tested dl501 gen1 all okay. Even cloning.

If use Godiag TCU adapter, before with ECU adapter and have to press the 120ohm button briefly when building the connection then it read immediately.
Just try or plug K15 in and out.

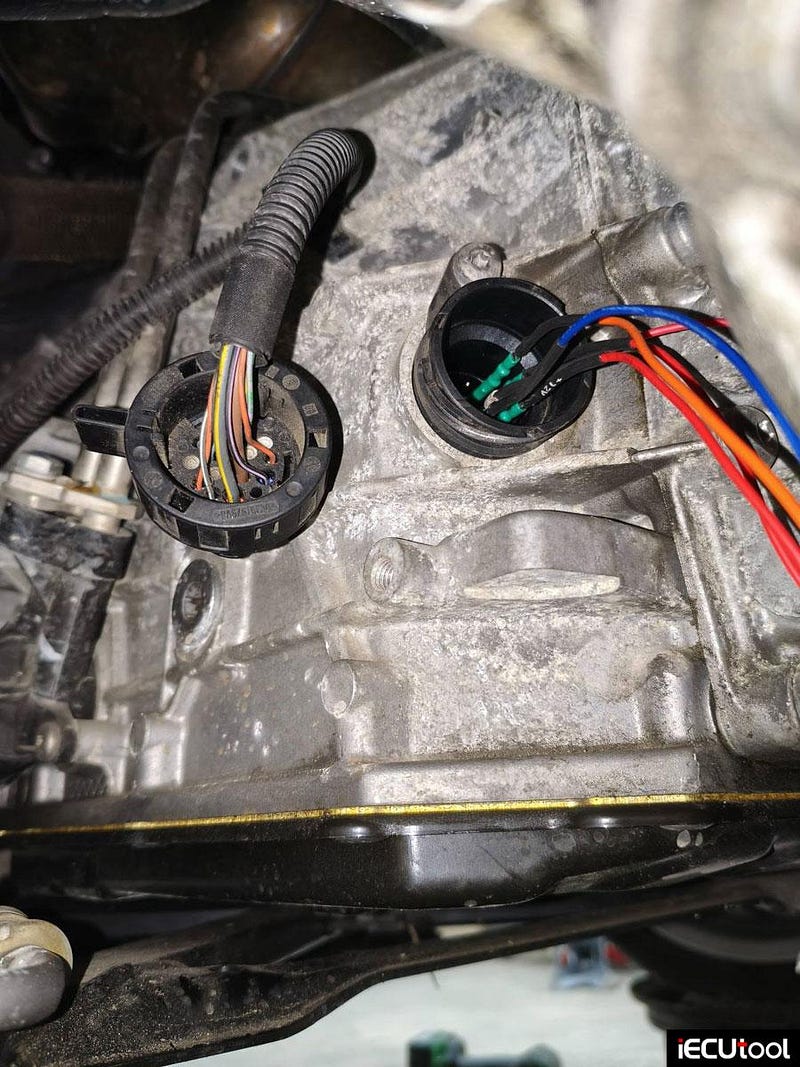

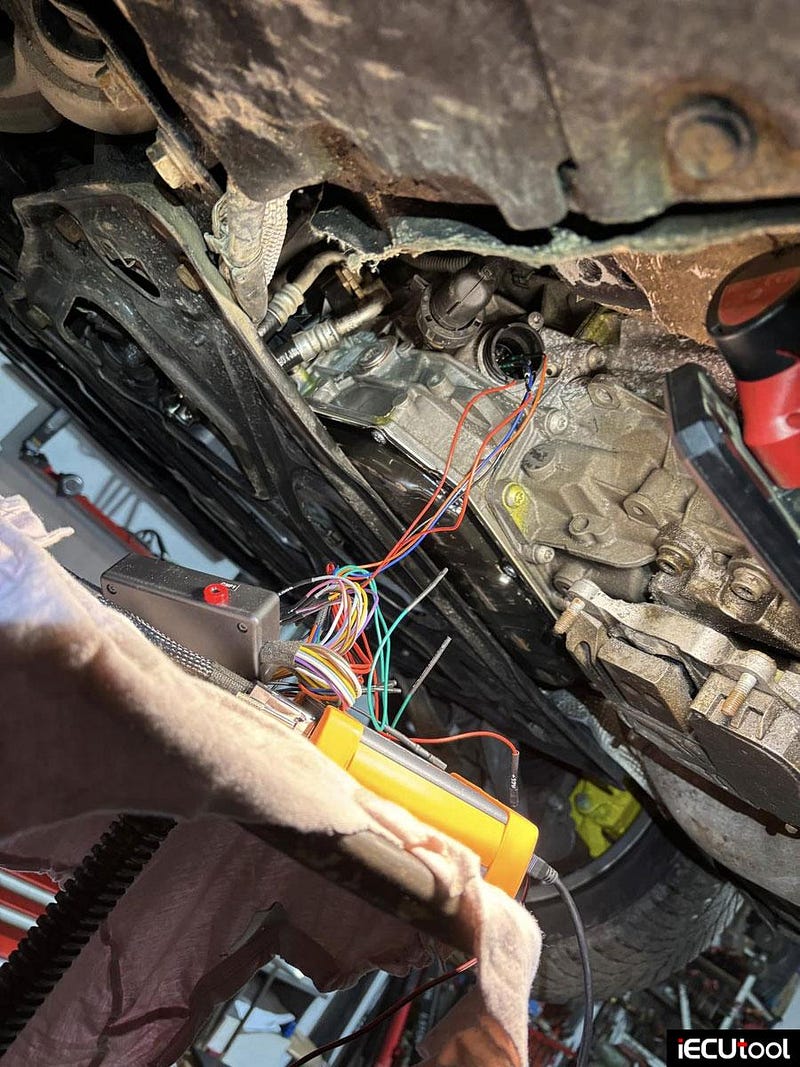

Example:

Audi A6 C7
DL501 Cloning.

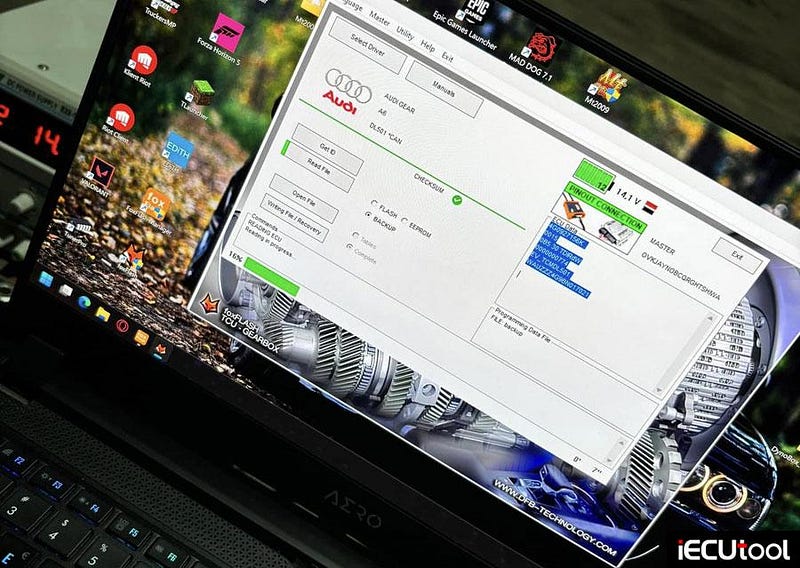

Read OK
Write OK


Foxflash Failed to Read VAG DL501 Gearbox Solution
Foxflash Failed to Read VAG DL501 Gearbox Solution
Foxflash Failed to Read VAG DL501 Gearbox Solution
