Foxflash Clone Audi A6 EDC16CP34 ECU on Bench

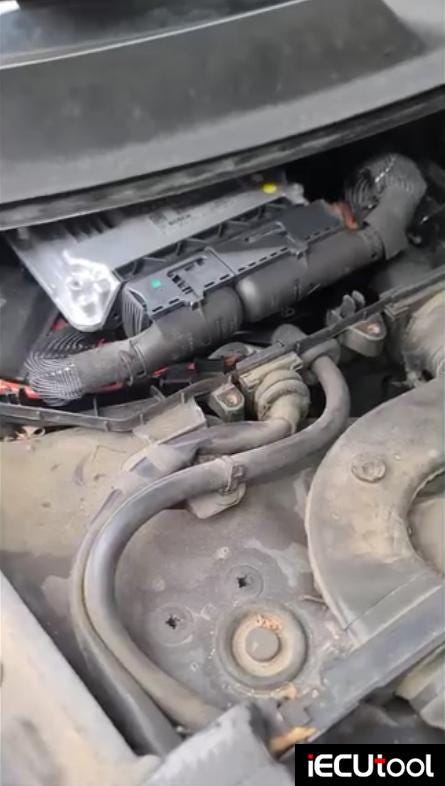

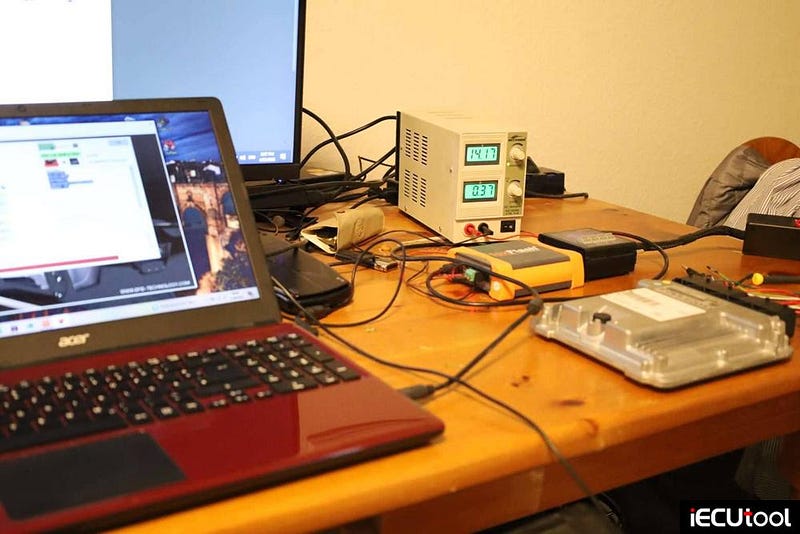

 User feedback today: Completed clone of edc16cp34 Audi A6 C6 2008 Avant 2,7 TDI with foxflash ecu programmer in Bench, no problem.

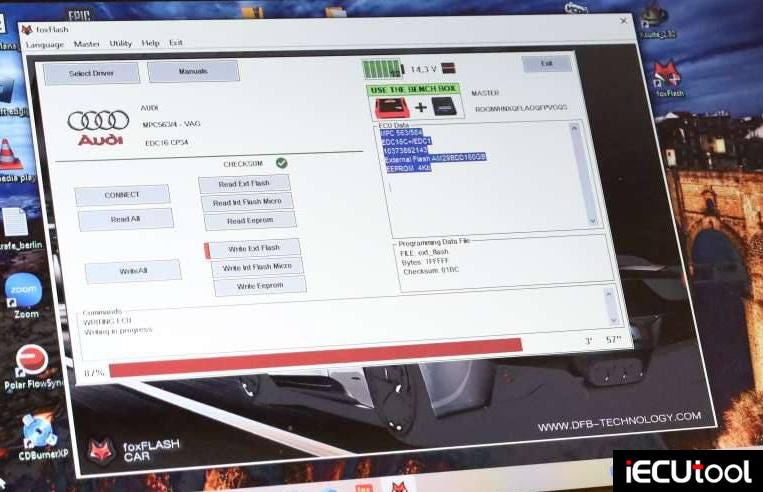

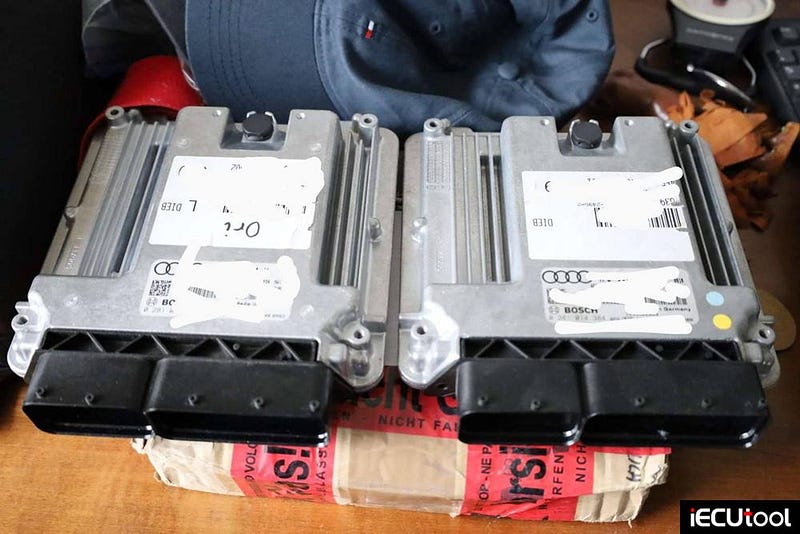

Just backed up ext flash, int flash and eeprom and then wrote to donor.

Only for int flash tool does not do chksum but was no problem without.


Foxflash Clone Audi A6 EDC16CP34 ECU on Bench
Foxflash Clone Audi A6 EDC16CP34 ECU on Bench
Foxflash Clone Audi A6 EDC16CP34 ECU on Bench
Foxflash Clone Audi A6 EDC16CP34 ECU on Bench
