CG FC200 Read and Write Infiniti MED17.7.2 ECU on Bench

 Read and write Nissan/Infiniti MED17.7.2 ECU with CG FC200 programmer successully.

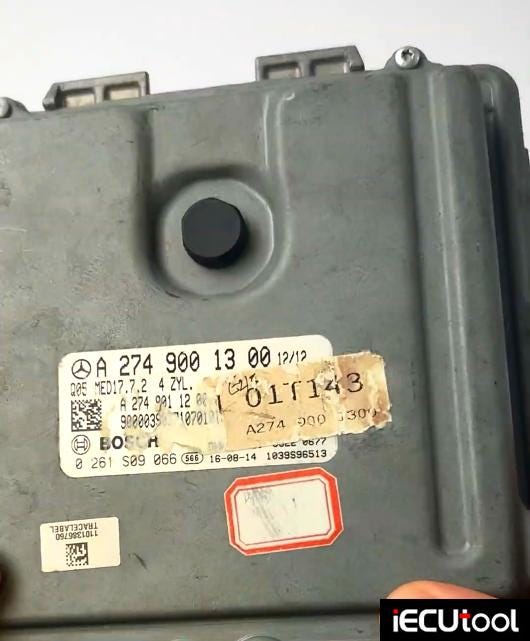

Quick search MED17.7.2 ECU.
Use platform mode (bench mode).
Check wiring diagram.

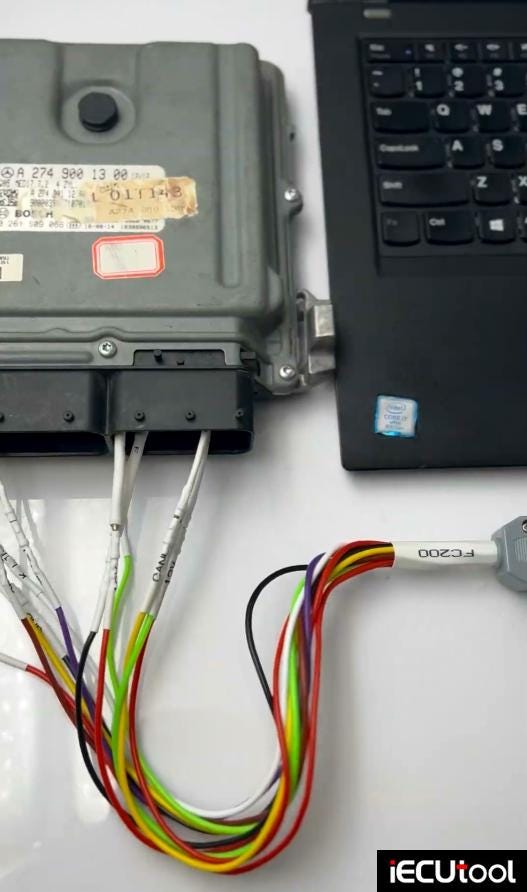

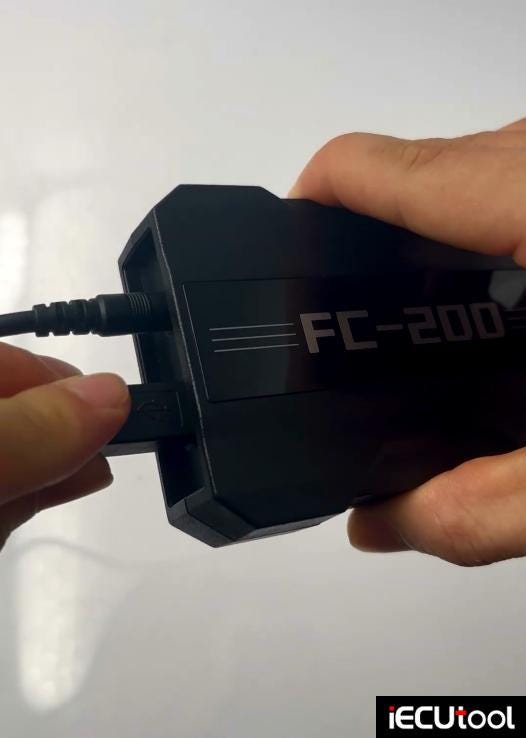

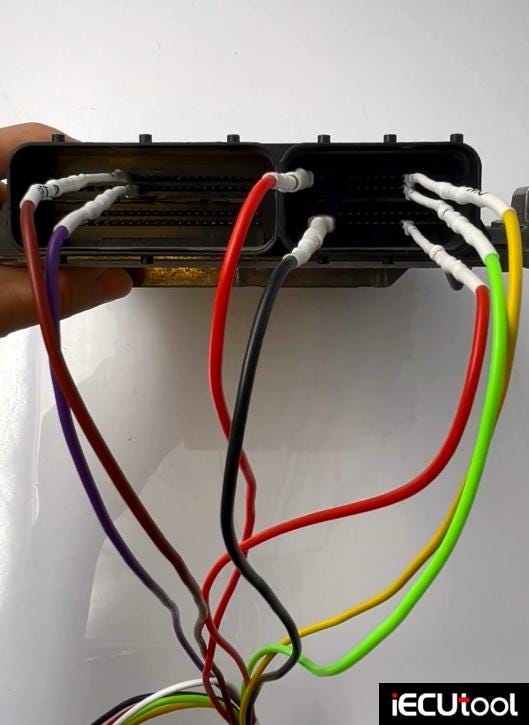

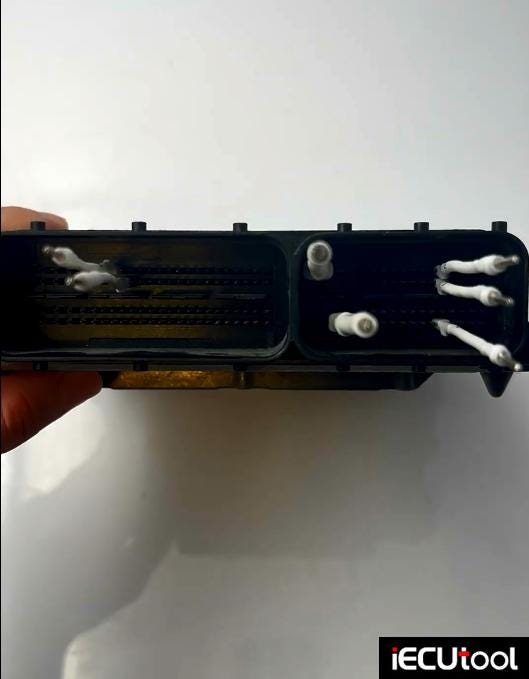

Connect ECU with FC200 via FC200 ECU adapter.

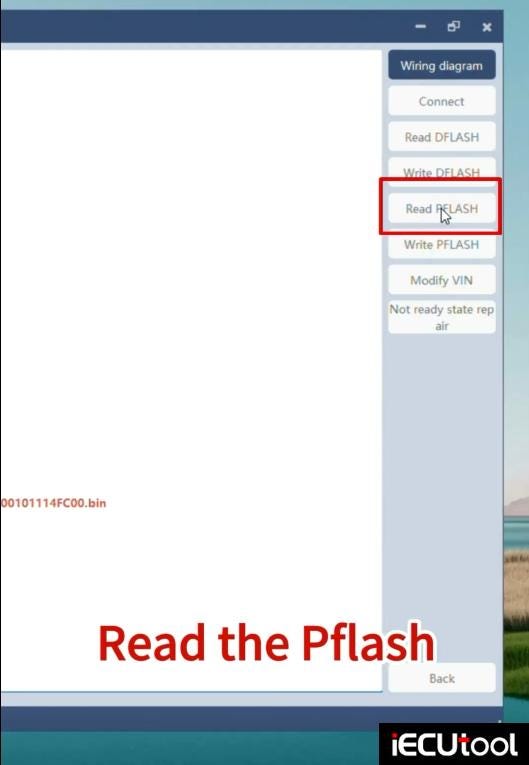

Read Dflash and Pflash ok.

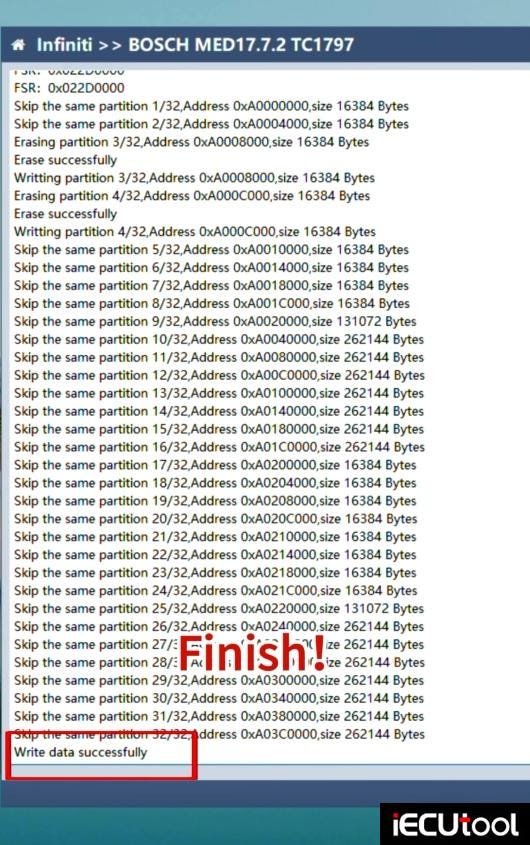

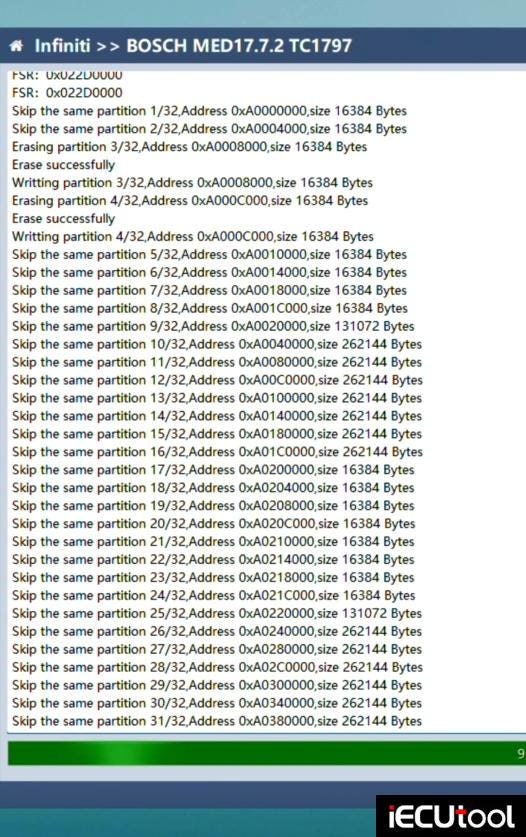

Write Dflash and Pflash ok.
IMMO OFF ok. Immo off in device without 3rd party device.

Images attached:


CG FC200 Read and Write Infiniti MED17.7.2 ECU on Bench
CG FC200 Read and Write Infiniti MED17.7.2 ECU on Bench
CG FC200 Read and Write Infiniti MED17.7.2 ECU on Bench
CG FC200 Read and Write Infiniti MED17.7.2 ECU on Bench
CG FC200 Read and Write Infiniti MED17.7.2 ECU on Bench
CG FC200 Read and Write Infiniti MED17.7.2 ECU on Bench
CG FC200 Read and Write Infiniti MED17.7.2 ECU on Bench
CG FC200 Read and Write Infiniti MED17.7.2 ECU on Bench
CG FC200 Read and Write Infiniti MED17.7.2 ECU on Bench
