How to Fix Foxflash EDC15C4 Error Send Wake

It’s a BMW 3D 184hp with Bosch EDC15C4 ECU.
Tried Foxflash Full mode but not working(connected everything as shown, measured cables, resistors, outputs everything with multimeter and it’s 100% fine but still no connection) — ERROR SEND WAKE.

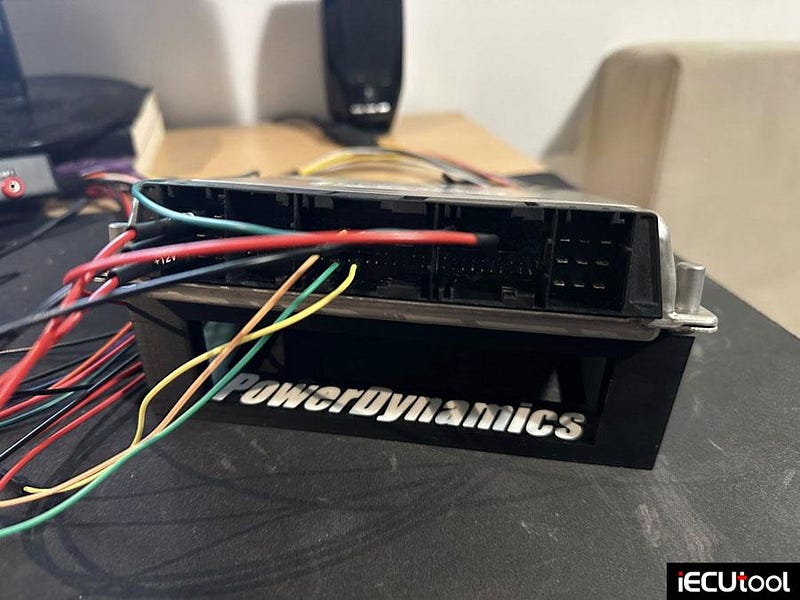

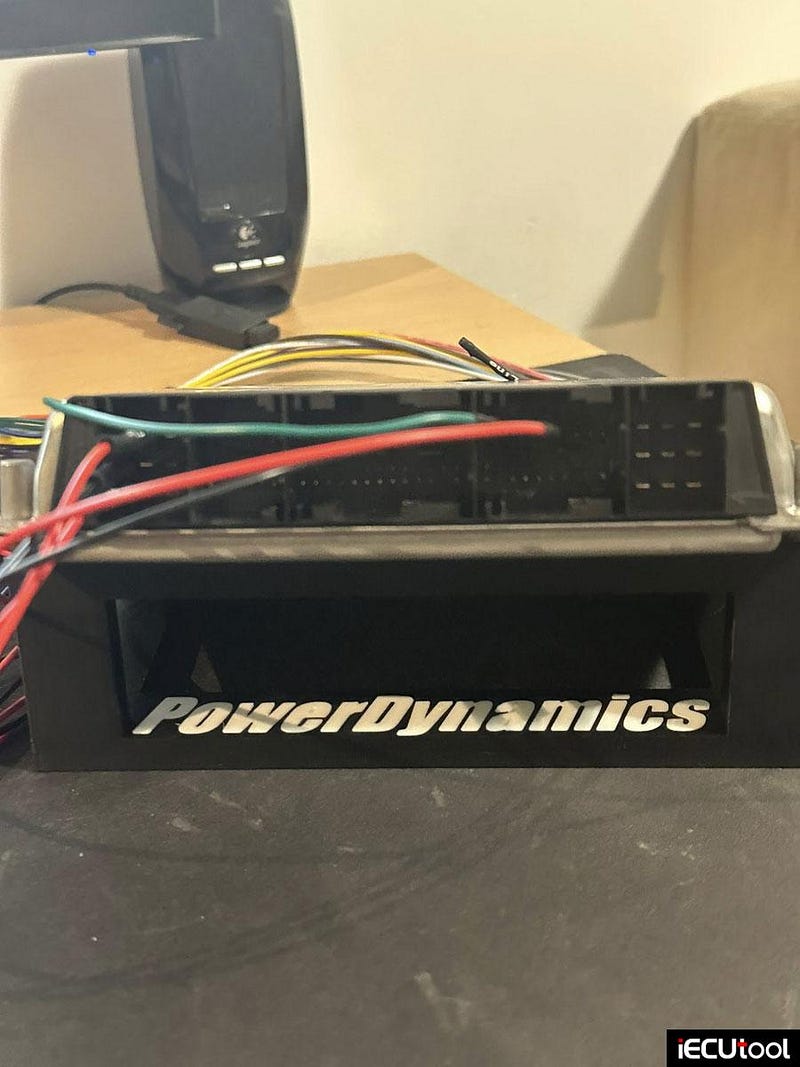

Simulated OBD on BENCH via K-LINE ok.

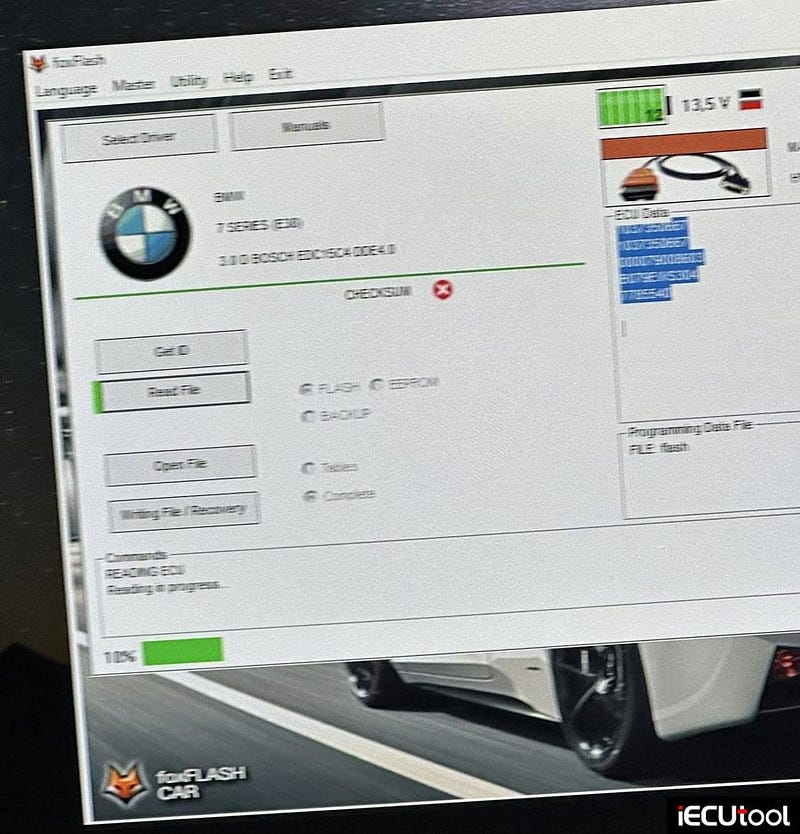

READ — 5 min
WRITE — 2 MIN
ONLY FLASH PARTIAL READ!!
Checksum with winols.


Foxflash Read and Write BMW EDC15C4 ECU via OBD on Bench
Foxflash Read and Write BMW EDC15C4 ECU via OBD on Bench
Foxflash Read and Write BMW EDC15C4 ECU via OBD on Bench
Foxflash Read and Write BMW EDC15C4 ECU via OBD on Bench

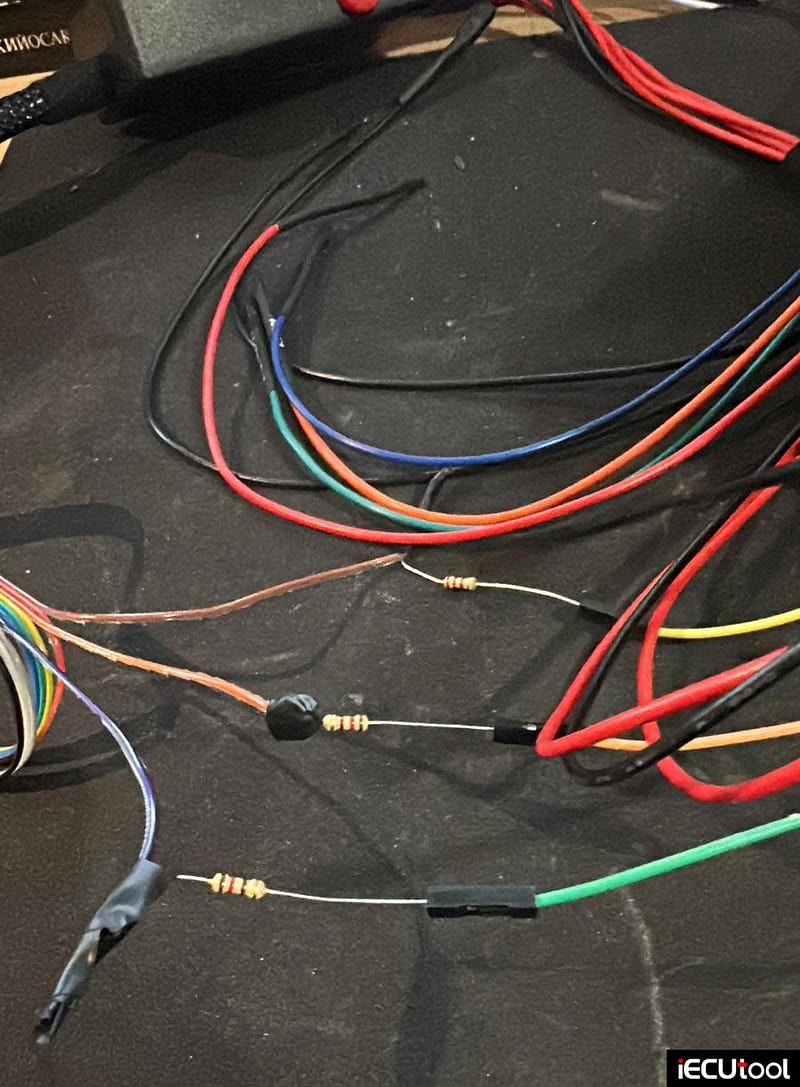

If need to do it via full system mode, need to fix the colored rainbow cable!

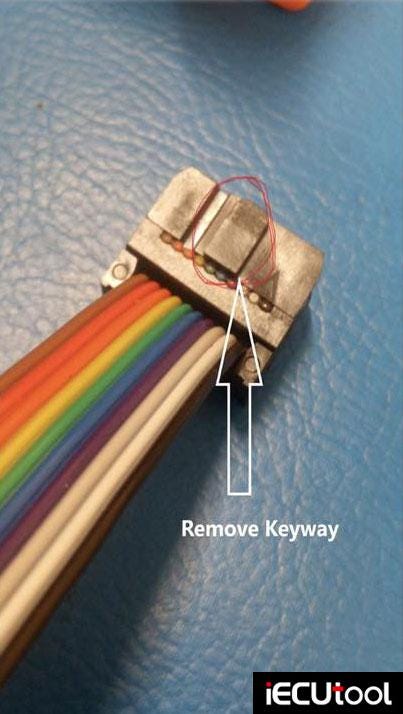

Problem is rainbow cable inverted, you need to fix the cable.


Foxflash Read and Write BMW EDC15C4 ECU via OBD on Bench
