Read Write JLR EDC15C4 with Foxflash GT100

 How to simulate OBD for Land rover Bosch EDC15C4 ECU using Foxflash programmer?

obd simulation worked with the Godiag GT100 breakout box.

It worked with car OBD not full system.

Full system doesn’t work. Full system is not about OBD.

Just do standard pinout.

Read with obd protocol without resistors just k line and + -.

Connect both k line for safety.

Added photos:

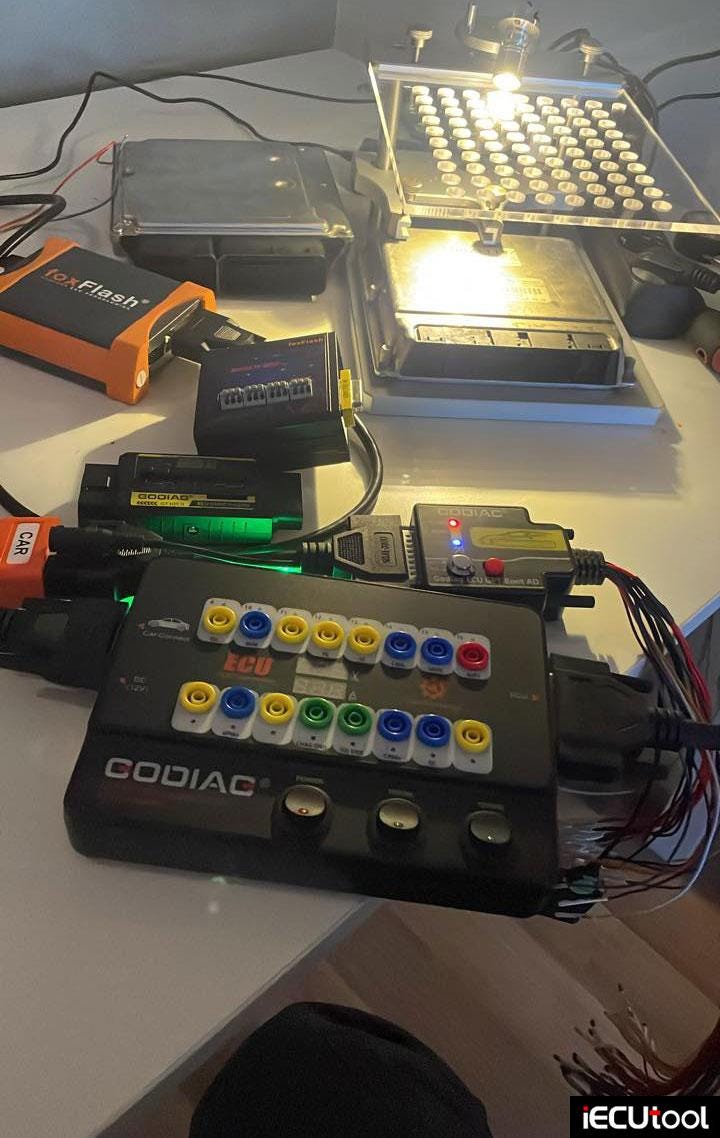

Foxflash Read and Write JLR EDC15C4 ECU with Godiag GT100

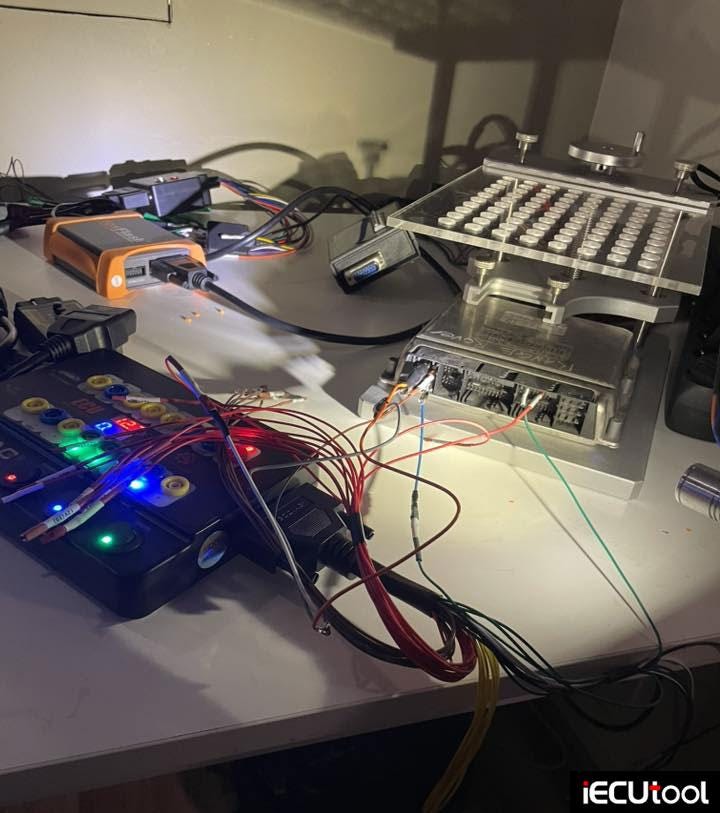

Foxflash Read and Write JLR EDC15C4 ECU with Godiag GT100
Foxflash Read and Write JLR EDC15C4 ECU with Godiag GT100
