How to Fix DC706 Ford KA BSI Read Failure

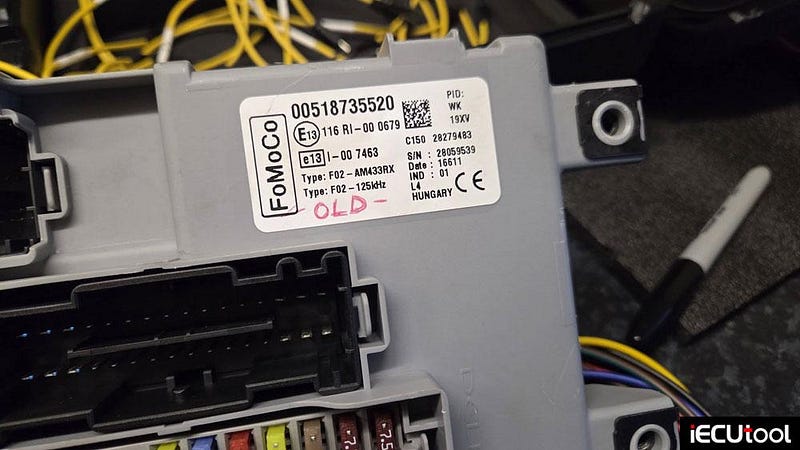

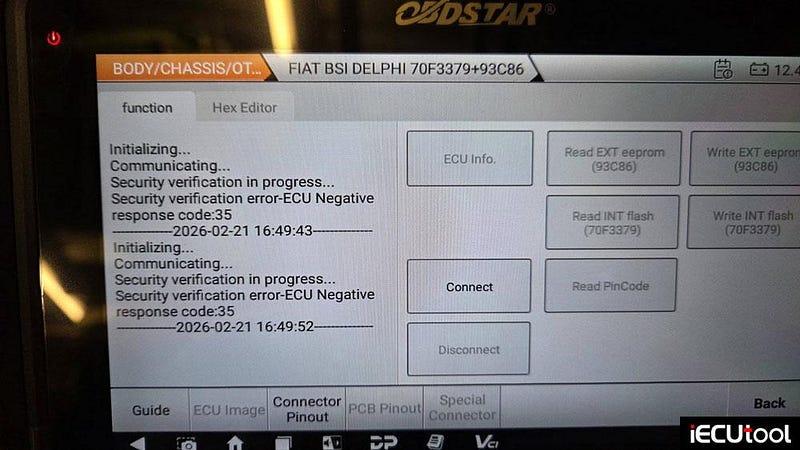

 Problem: I’m having trouble reading this bsi off a Ford Ka (Fiat 500) with OBDSTAR DC706 on bench mode. Tried with and without 120 ohm, no luck. Any suggestions?

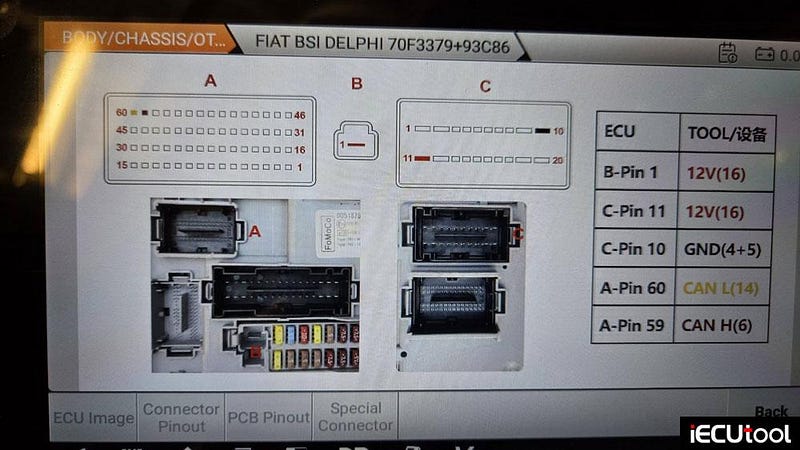

OBDSTAR DC706 Failed to Read Ford KA BSI Solution
OBDSTAR DC706 Failed to Read Ford KA BSI Solution
OBDSTAR DC706 Failed to Read Ford KA BSI Solution

Solution:

Select Ford BSI (Ford BSI Delphi 70F3379+93C86) rather than Fiat BSI. Don’t forget to connect a power supply.

Update:

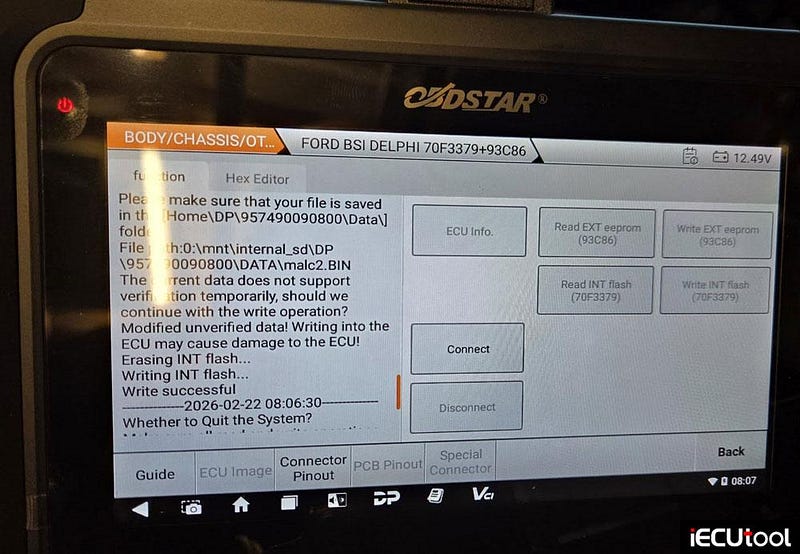

Fixed. Important to select Ford for a ka not Fiat, despite the chips being the same!
Worked fine when selecting as Ford.


OBDSTAR DC706 Failed to Read Ford KA BSI Solution
