CG FC200 Guide to Porsche SDI6 SDI7 CS PIN Reading

 As titled, iecutool.eu here will show how to read Porsche SDI6/SDI7 engine ECU CS and PIN code using CG FC200 programmer.


How to Read Porsche SDI6 SDI7 ECU CS PIN with CG FC200

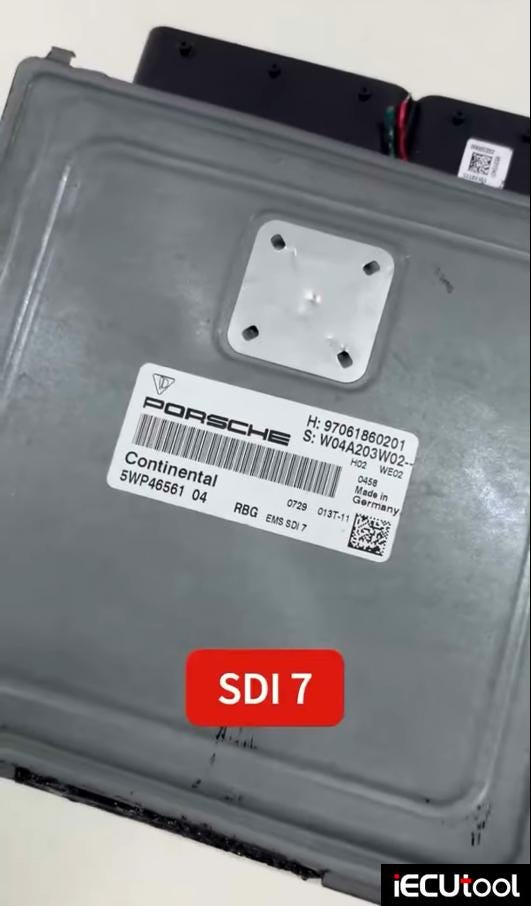

In FC200 software, select Porsche SDI7 ECU.

Check bench wiring diagram.

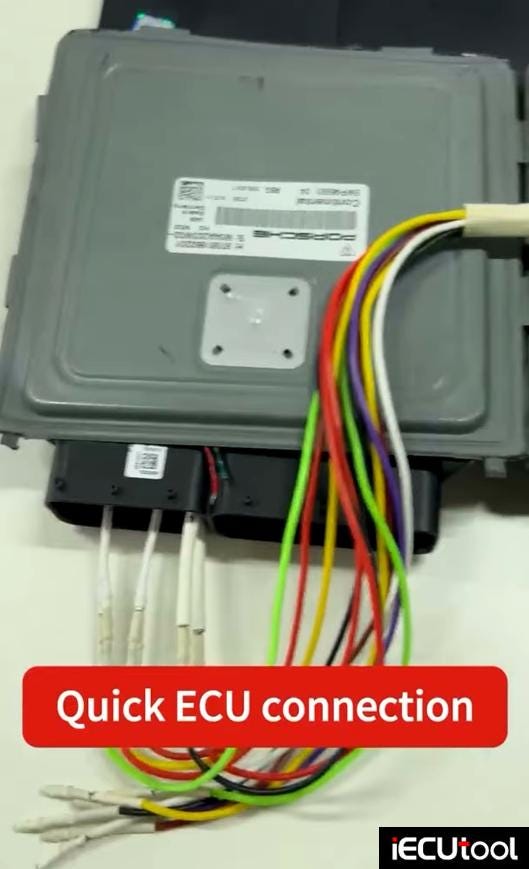

Connect ECU with FC200 follow the diagram.


How to Read Porsche SDI6 SDI7 ECU CS PIN with CG FC200
How to Read Porsche SDI6 SDI7 ECU CS PIN with CG FC200

Read and save ExtEEPROM and Pflash data.

Select decrypt immo data.

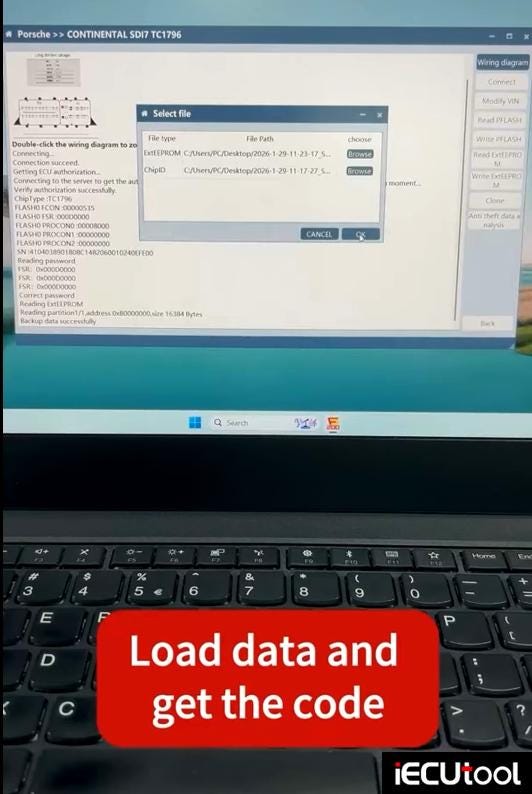

Then load ExtEEPROM and chip ID data to retrieve CS and PIN code.


How to Read Porsche SDI6 SDI7 ECU CS PIN with CG FC200
How to Read Porsche SDI6 SDI7 ECU CS PIN with CG FC200

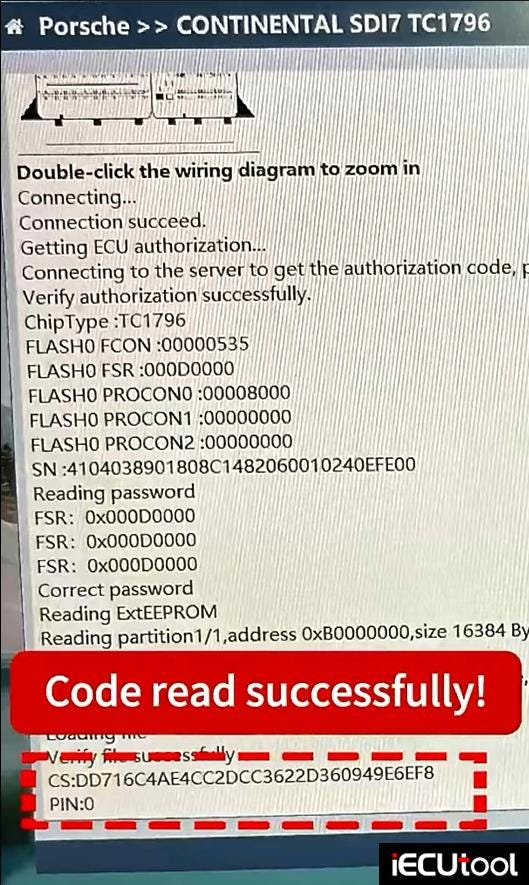

Read CS and PIN successfully.


How to Read Porsche SDI6 SDI7 ECU CS PIN with CG FC200
