Launch X431 ECU Programmer for Replacing Mercedes DSM FBS4

 How to replace Mercedes-Benz W212 DSM A0002703452 (FBS4) with Launch X431 ECU & TCU programmer on bench?

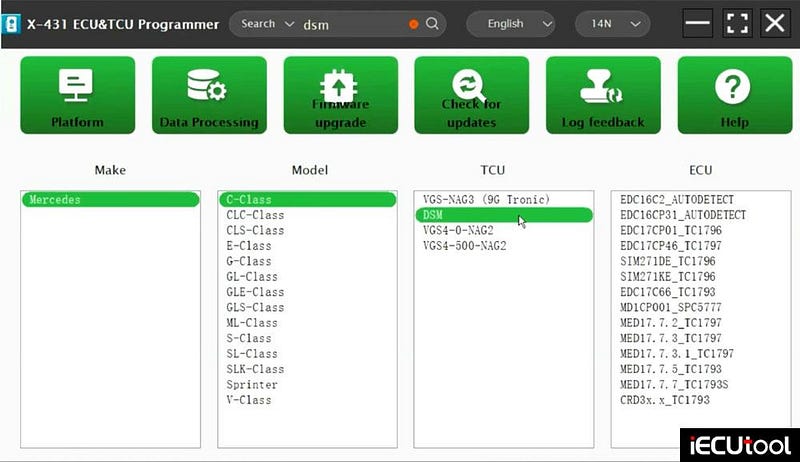

Quick search DSM, choose DSM and Bench mode.


Replace Mercedes DSM FBS4 with Launch X431 ECU Programmer

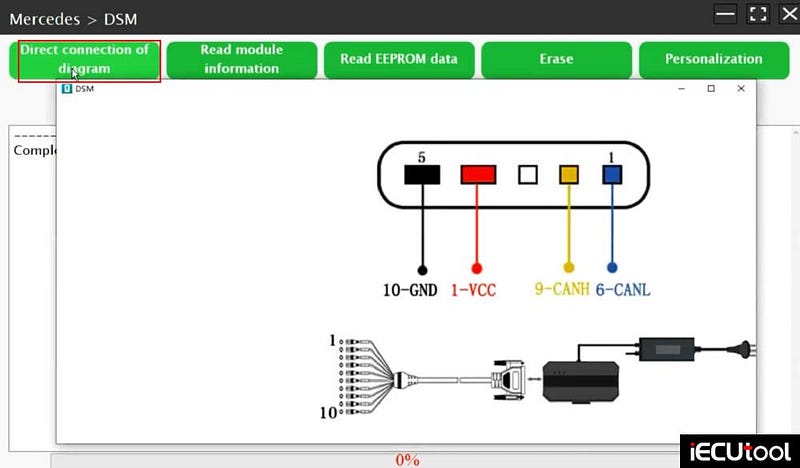

Check wiring diagram.


Replace Mercedes DSM FBS4 with Launch X431 ECU Programmer

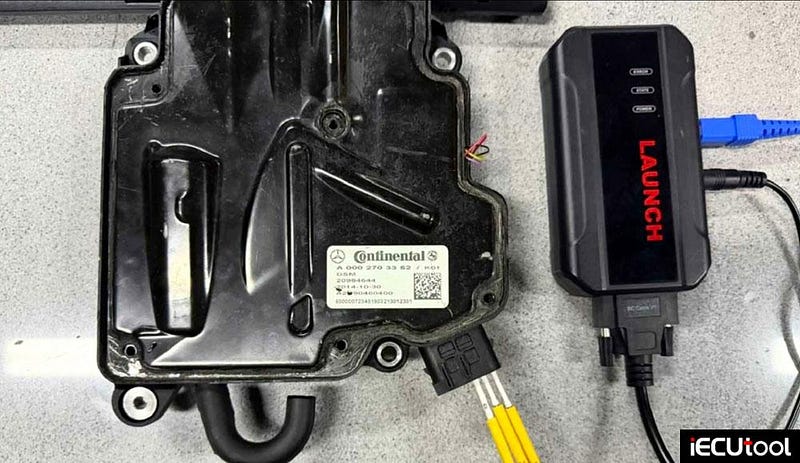

Connect DSM FBS4 with Launch X431 ECU programmer according to the diagram.


Replace Mercedes DSM FBS4 with Launch X431 ECU Programmer

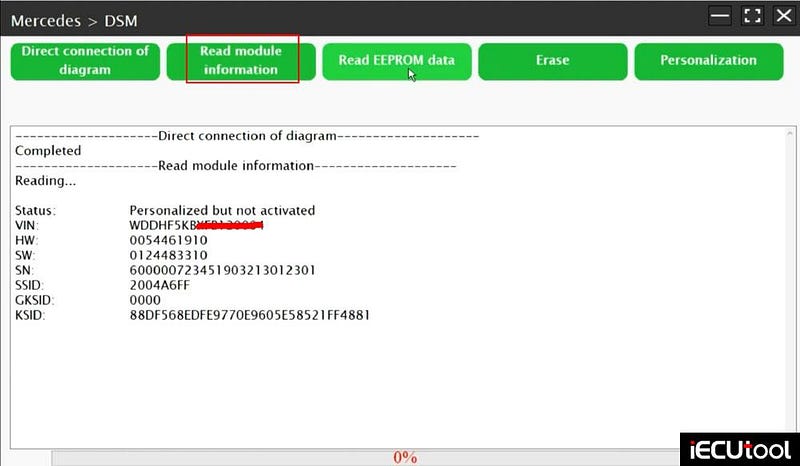

Read module information


Replace Mercedes DSM FBS4 with Launch X431 ECU Programmer

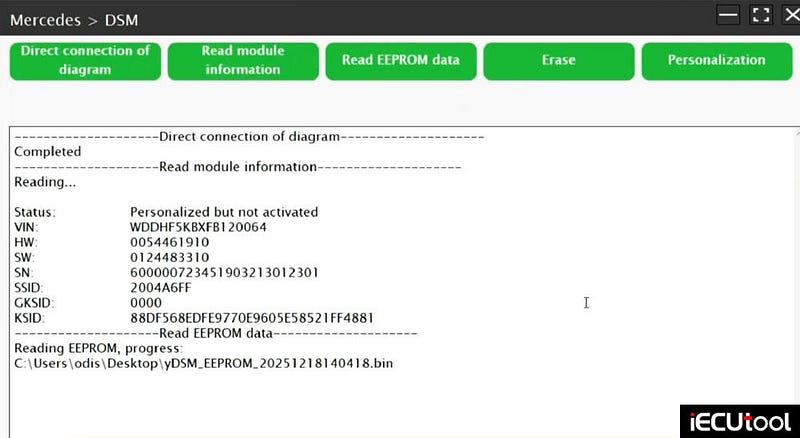

Read EEPROM data
Read and save original data.


Replace Mercedes DSM FBS4 with Launch X431 ECU Programmer

After reading data, exit directly and replace the donor Gearbox that needs to be replaced.
Connect the donor Gearbox with Launch X431 ECU programmer.
Read module information and read eeprom for the donor gearbox to back up data.


Replace Mercedes DSM FBS4 with Launch X431 ECU Programmer

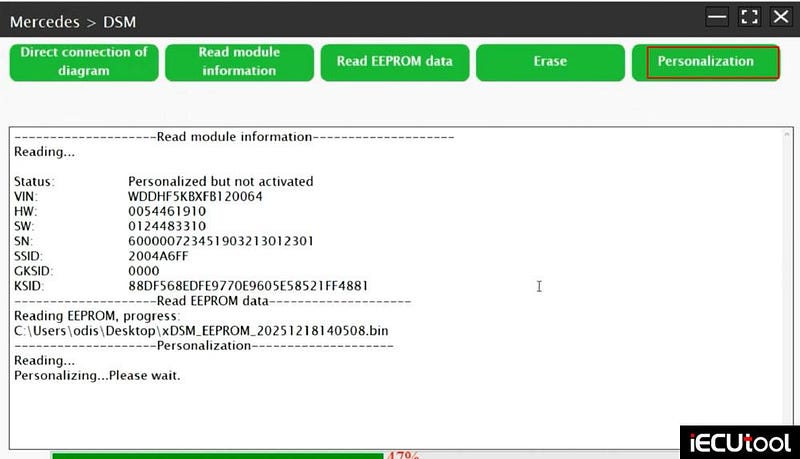

Select Personalization.

Upload the original gearbox eeprom data and personalize data.


Replace Mercedes DSM FBS4 with Launch X431 ECU Programmer

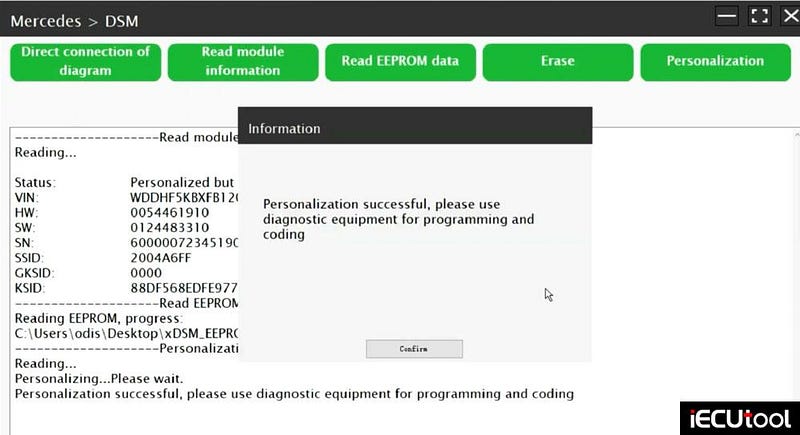

Persianization successful.


Replace Mercedes DSM FBS4 with Launch X431 ECU Programmer

New gearbox needs to be programmed to start. Use MB star device for programming and coding.
