Foxflash Boot Mode Clone for Peugeot SID807EVO ECU

 Foxflash report today: Clone PEUGEOT PARTNER SID807EVO ECU successfully.

SID807EVO
Read/Write BOOT MODE
Cloning ok
Checksum correction by foxflash.

NOTE:

No need to read password for PSA SID807EVO, only read and write.

If it is Ford SID807EVO, we need to read password first.

Some users also reported that the PADFlash programmer will clone this ECU on bench mode.

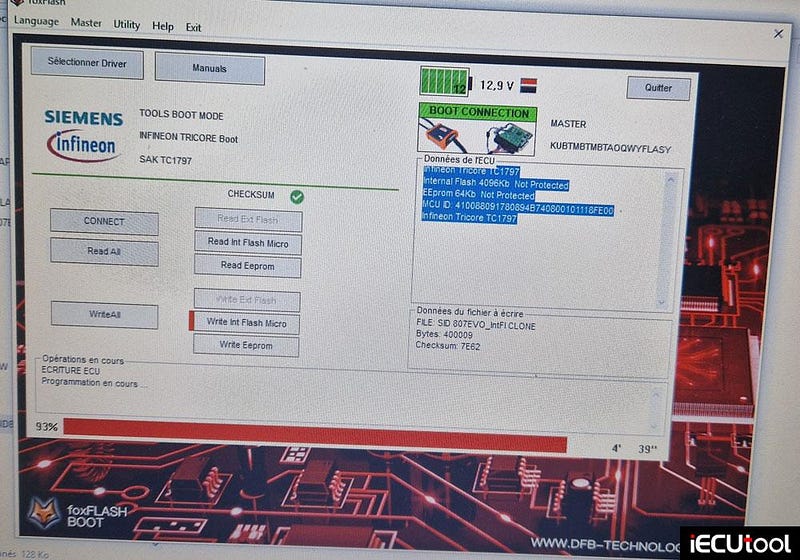

Foxflash Clone Peugeot SID807EVO ECU in Boot Mode

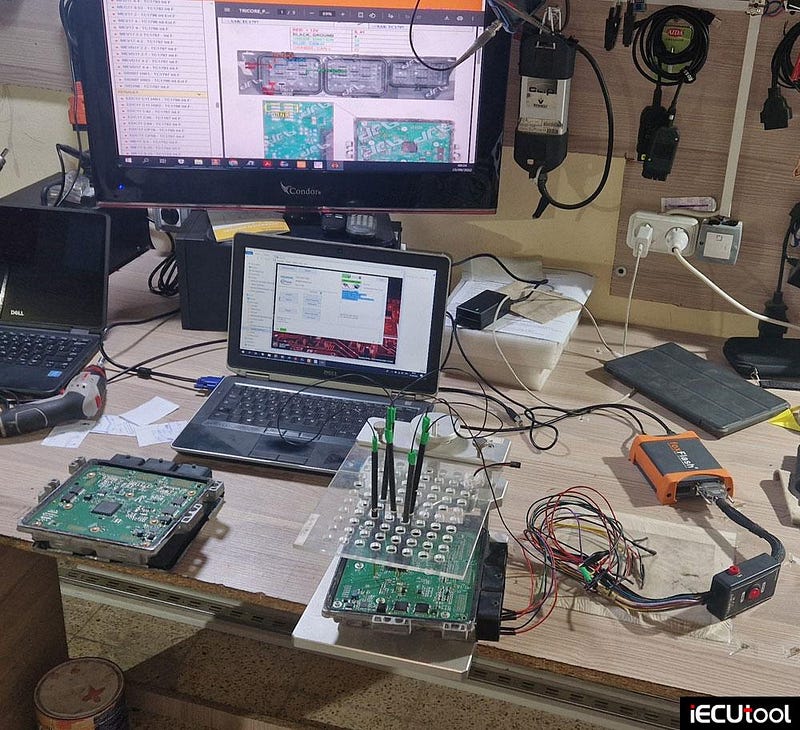

Foxflash Clone Peugeot SID807EVO ECU in Boot Mode

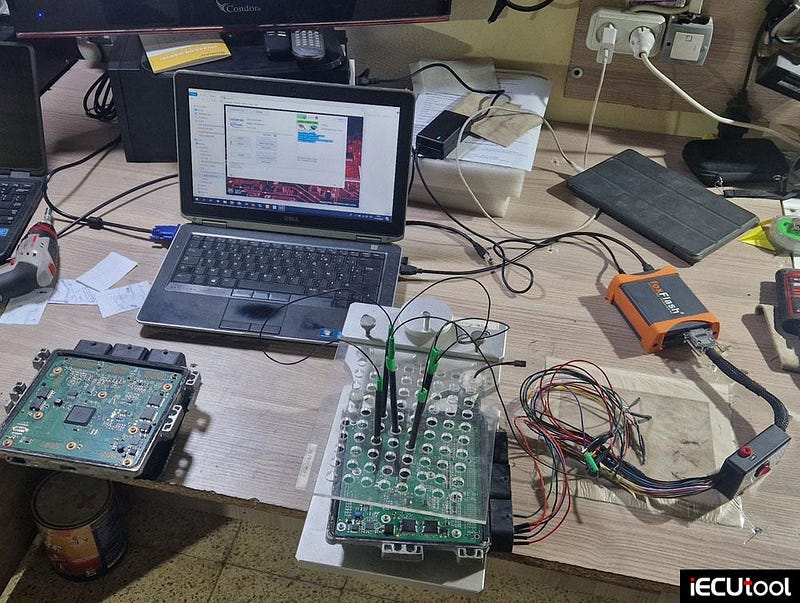

Foxflash Clone Peugeot SID807EVO ECU in Boot Mode

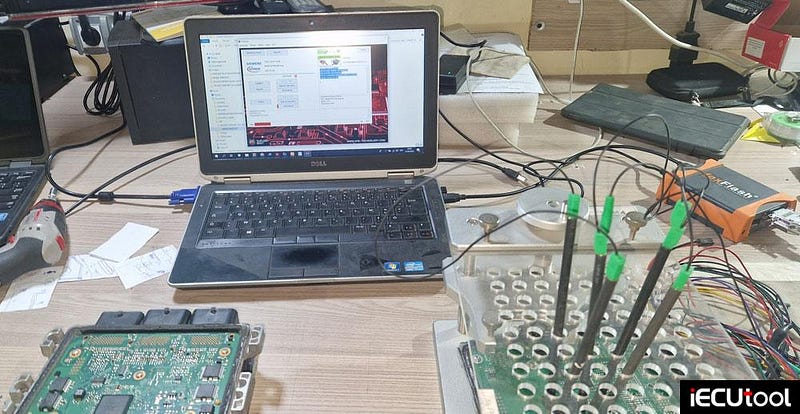

Foxflash Clone Peugeot SID807EVO ECU in Boot Mode
