How to Solve PSA MD1CS003 ECU Bench Locked with Foxflash

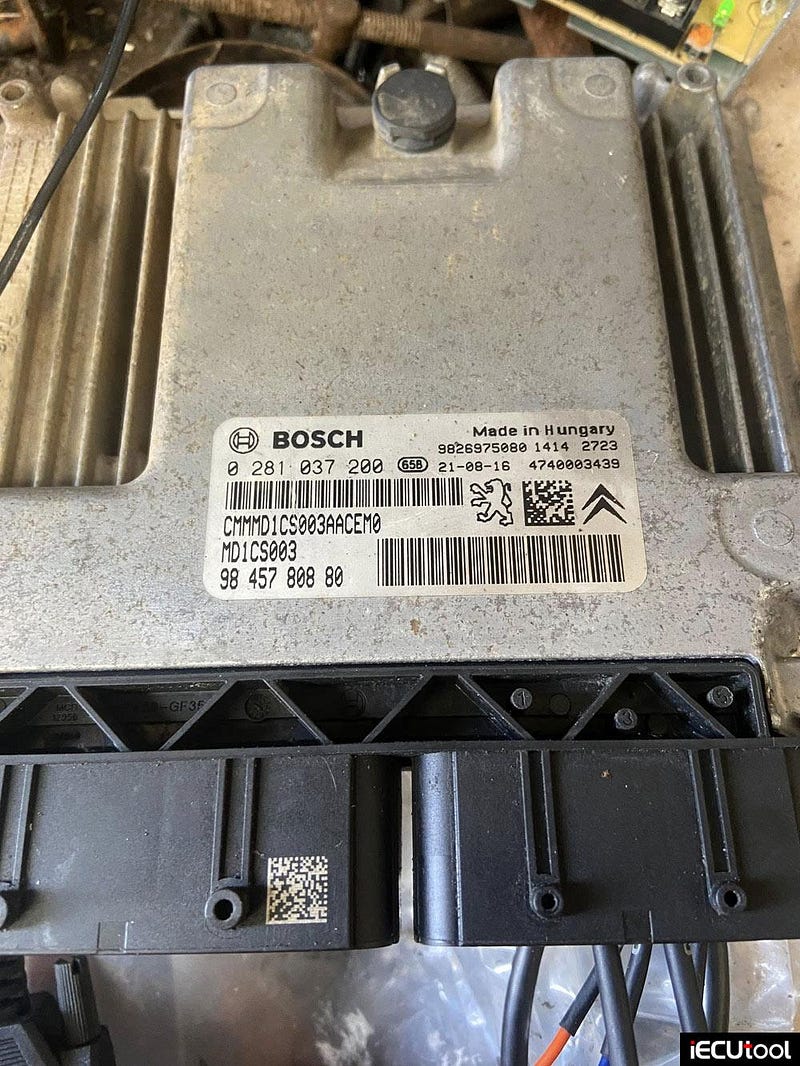

 Problem: Tried to read Peugeot Bosch MD1CS003 ECU 0281037200 with FoxFlash programmer but failed. Error SK2 bench locked.

Can Autotuner or Hexprog2 do them?


Foxflash PSA MD1CS003 ECU Error Bench Locked Solution
Foxflash PSA MD1CS003 ECU Error Bench Locked Solution

Solution:

They are not locked till around 2021. Done a lot of them with foxflash 2018–2021, this one is from 2022 and is locked.

0281 034 708 OK
0281 034 826 OK
0281 035 332 OK
0281 035 365 OK
0281 035 366 OK
0281 036 205 OK
0281 037 101 OK
0281 037 198 NOT POSSIBLE
0281 037 200 NOT POSSIBLE

037–039 are locked.

Foxflash, Autotuner, Flex etc cannot read if locked.

Only v2flasher after 2020. Vf2 can unlock on lab and after that can read/write.
