Foxflash Supports Ford SID807EVO ECU in Boot Mode

 Foxflash new user report:

Ford cmax 2015 1.6 tdci 115

SID807EVO ECU

Read/write/checksum and get password with foxflash.

Boot mode.

This can be done obd also with the full can protocol. Tested it and works fine on Fords. Unlike Peugeot/Citroen you can only do boot.

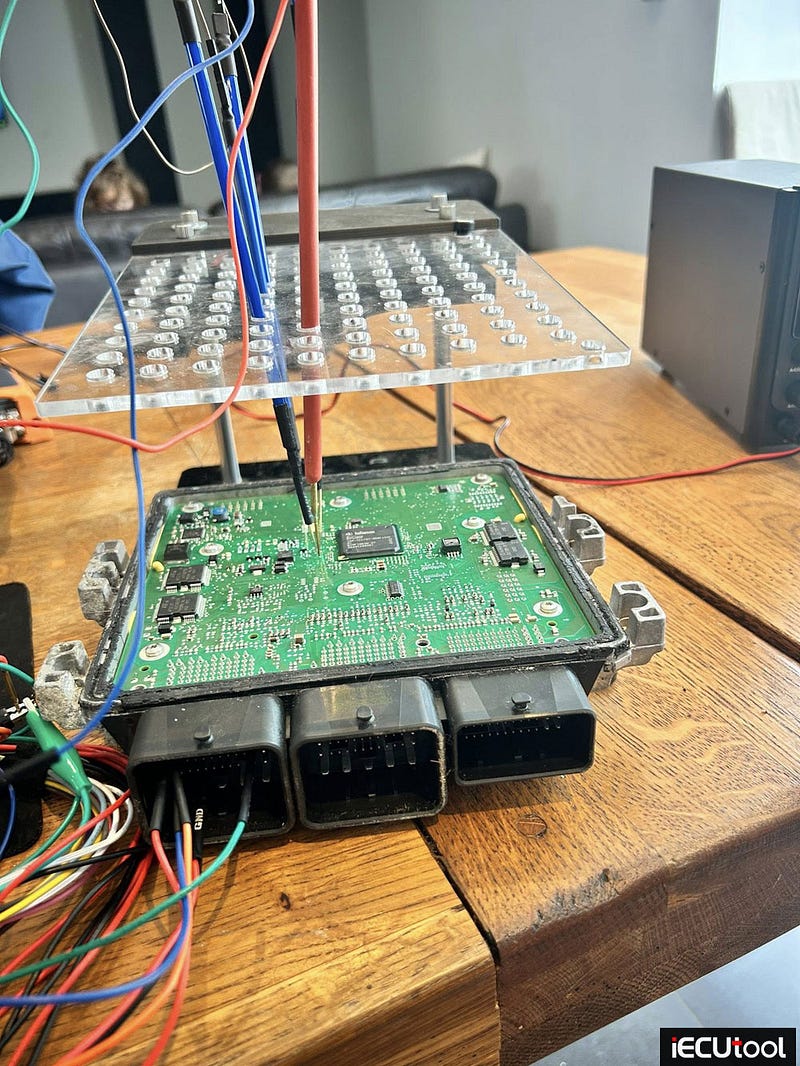

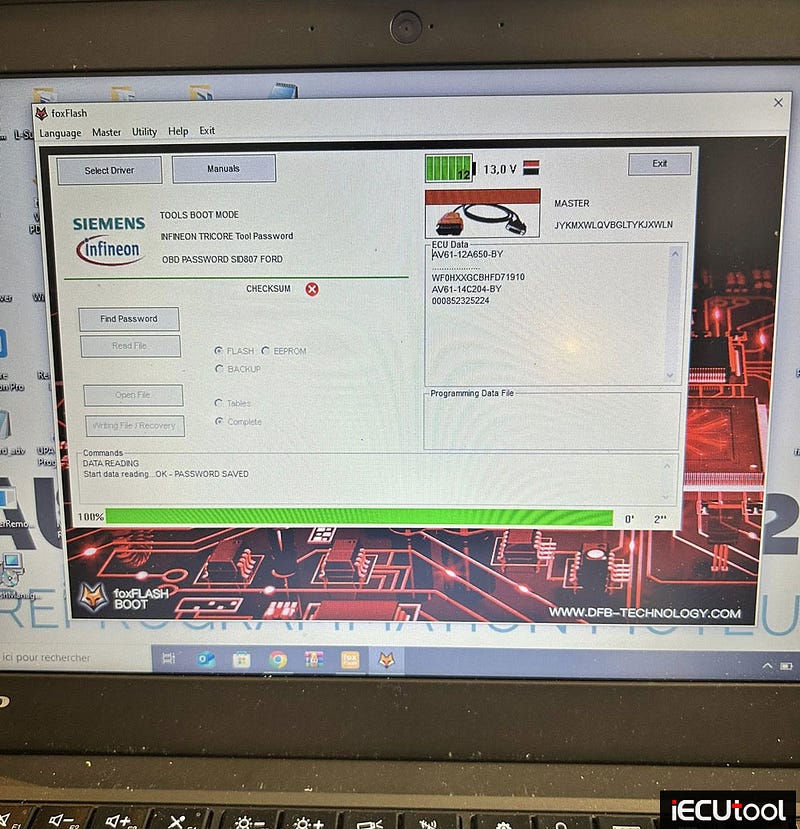

Foxflash Read and Write Ford SID807EVO ECU in Boot
Foxflash Read and Write Ford SID807EVO ECU in Boot
Foxflash Read and Write Ford SID807EVO ECU in Boot

Check SID807EVO boot mode pinout to foxflash here

http://www.pcmtuner.org/psa-sid807evo-boot-pinout-to-foxflash/
