Use DC706 for Fiat ME7.9.10 ECU IMMO OFF

 OBDSTAR DC706 read and write Fiat ME7.9.10 ECU on bench successfully.

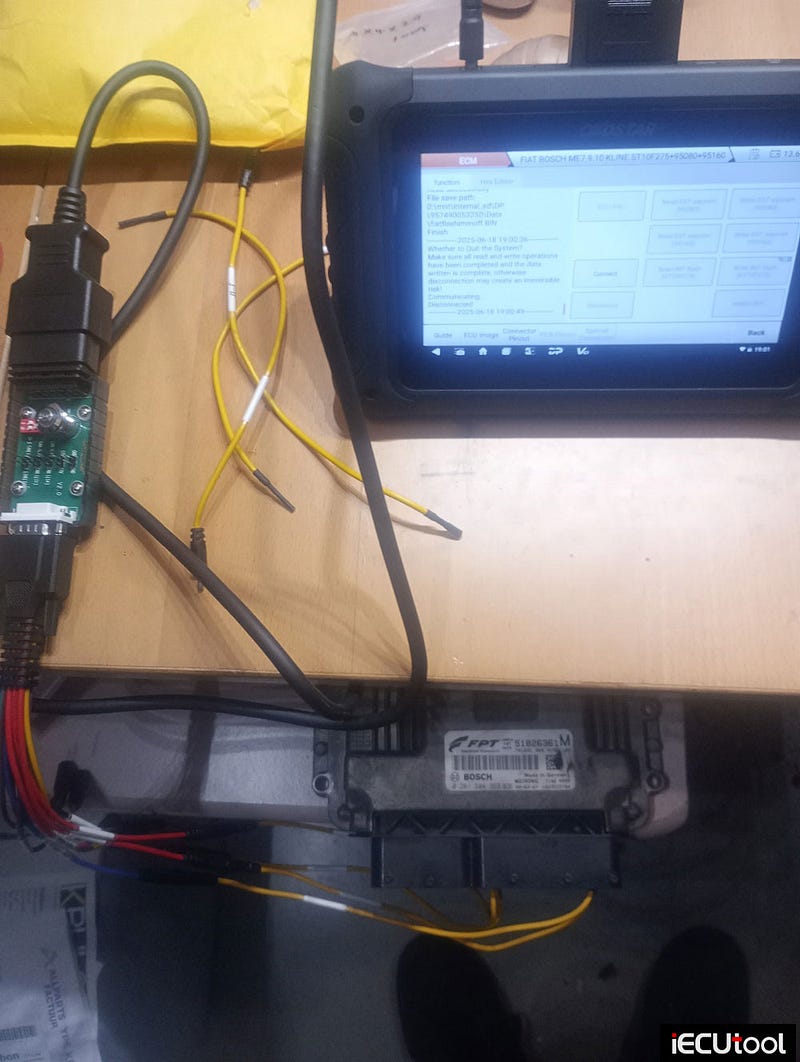

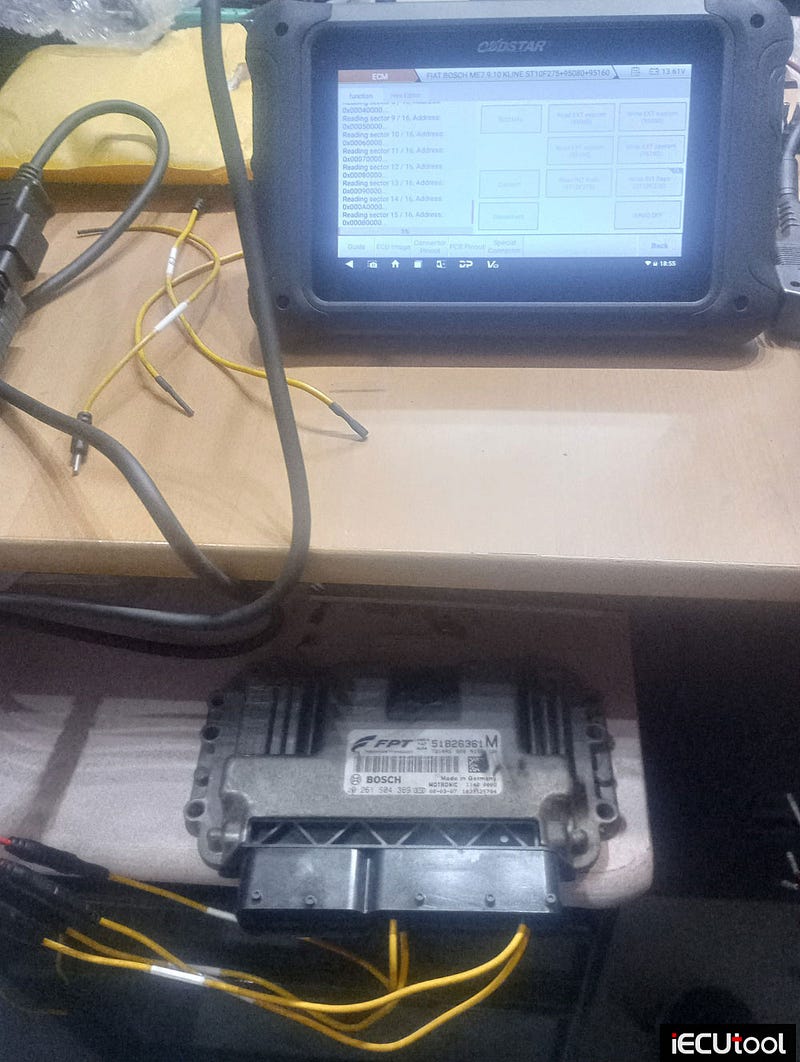

bench ( k-line) with P004 adapter.
Read write flash ok.
Read write eeprom ok.
int flash checksum correction by DC706.

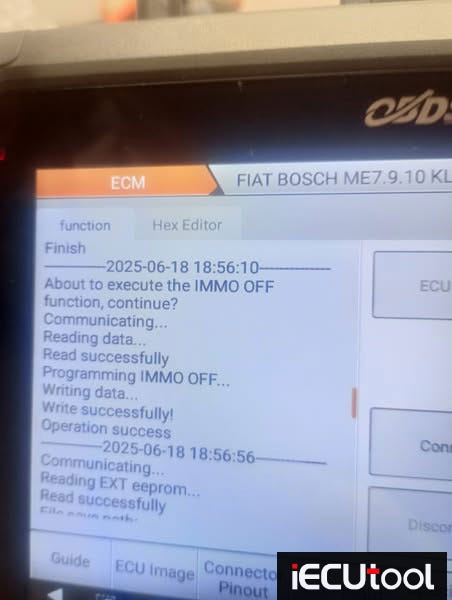

Immo off in device. No need 3rd party tool or software.


Fiat ME7.9.10 ECU IMMO OFF by OBDSTAR DC706
Fiat ME7.9.10 ECU IMMO OFF by OBDSTAR DC706
Fiat ME7.9.10 ECU IMMO OFF by OBDSTAR DC706
