PADFlash Bench Read Write DAF EDC7C32 ECU

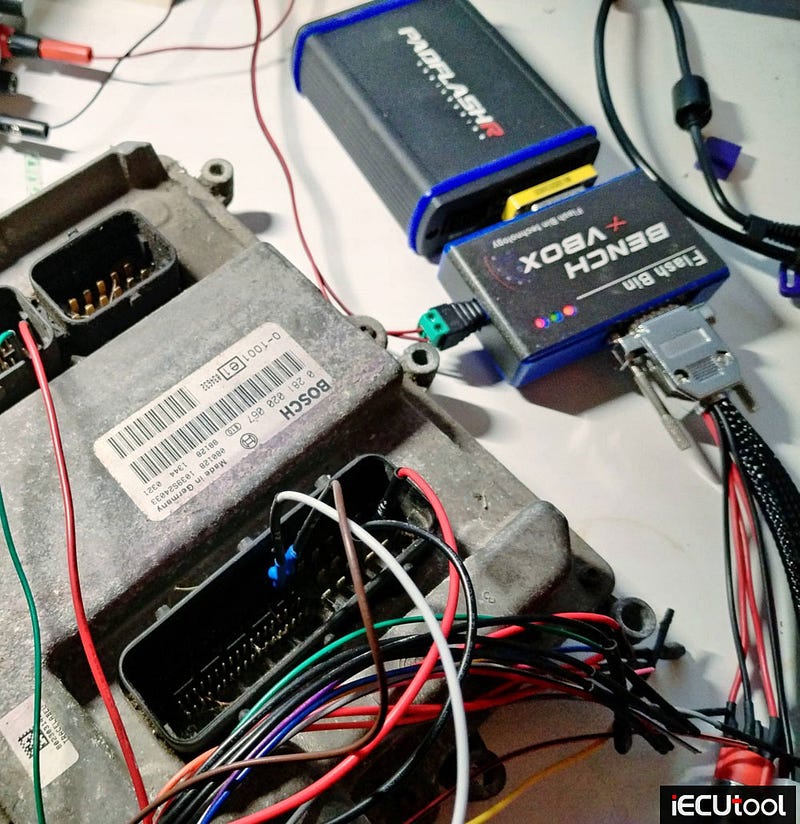

 DAF truck stg1 with padflash. EDC7C32 full read write bench mode with the EDC16 driver.

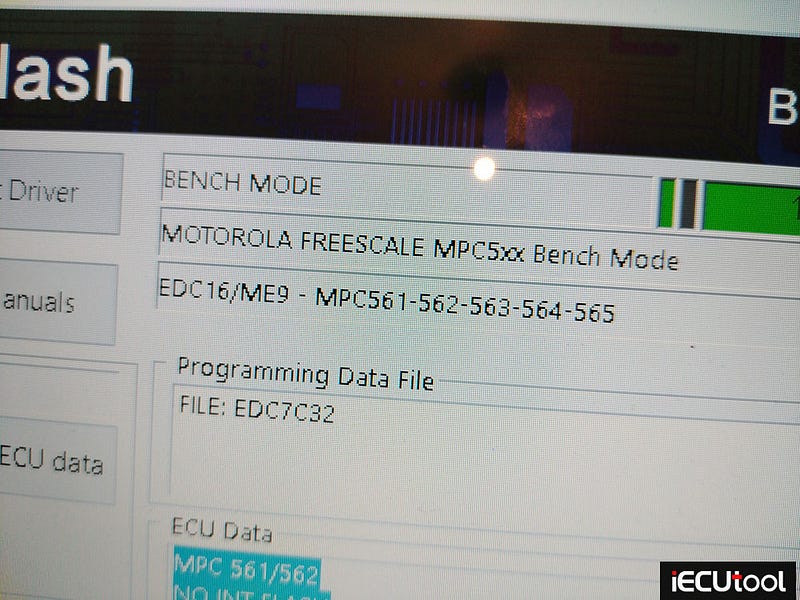

ECU: EDC7C32
Mode: Bench Mode
Proctol: MPC5xx Bench Mode

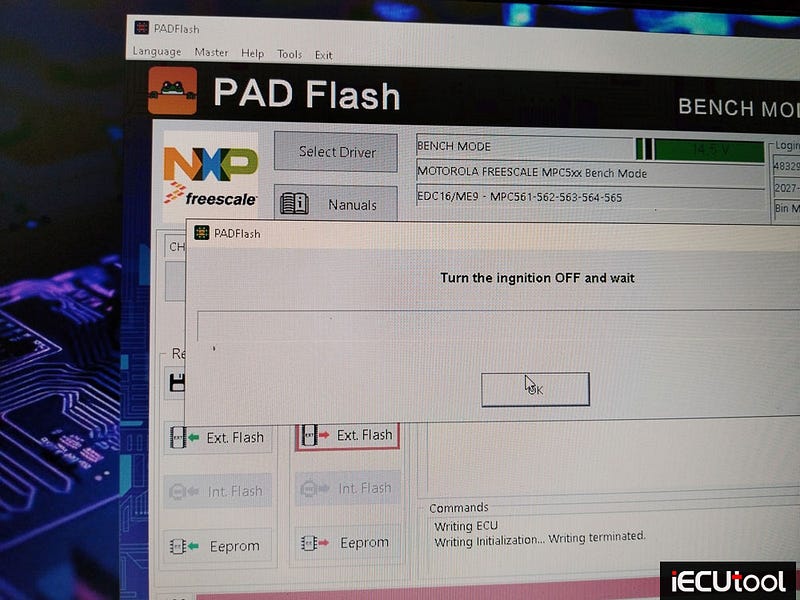

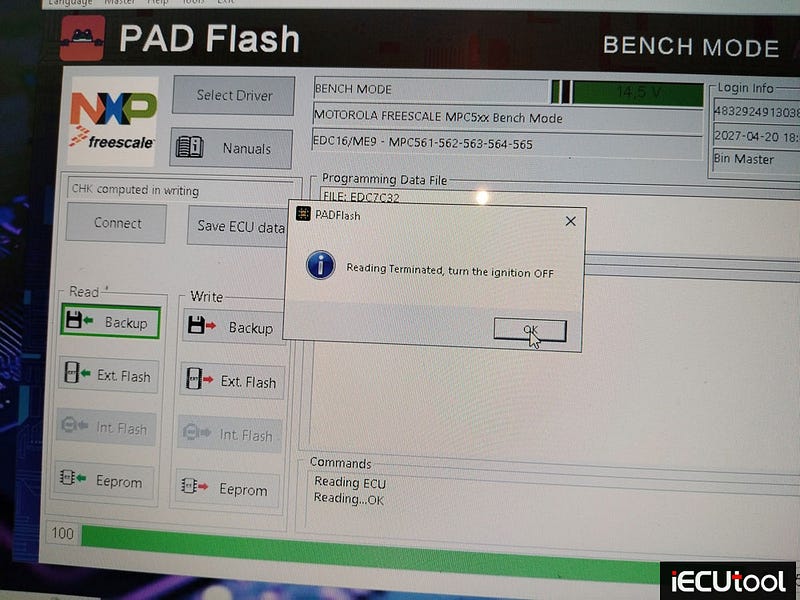

Read ok, Write ok.


PADFlash Read DAF Truck ECU EDC7C32
PADFlash Read DAF Truck ECU EDC7C32
PADFlash Read DAF Truck ECU EDC7C32
PADFlash Read DAF Truck ECU EDC7C32
PADFlash Read DAF Truck ECU EDC7C32
PADFlash Read DAF Truck ECU EDC7C32
