  Problem: I was trying to read JCB Dcu17cv51 ECU with foxflash . it is in the manuals section, but under jcb tc1724 is not listed. Anyone had to deal with this before? Solution: You can find JCB Dcu17cv51 in boot mode. Connect with the multifunction cable the following pinout and the boot shown below. Bosch DCU17CV51 TC1724 JCB adblue pinout to foxflash Use the driver: → TOOLS BOOT MODE → INFINEON TRICORE Boot → SAK TC1724 www.iecutool.com

 If your foxflash or new KT200 software crashes when read and write ECU, restart software still same thing happens, you have to enable Administrator elevated Privileges Windows 10. How to Enable Elevated Privileges in Windows 10? Press win+R to run Command, input: gpedit.msc Go to Local Computer Policy->Windows settings->Security Settings->Local Policies In the right pane you will see a setting User Account Control: Turn on Admin Approval Mode. Double-click on it and select Disabled . Find also User Account Control: Admin approval mode for built-in admin accounts . Double-click on it and select Disabled . After enabling the highest administrator privileges, restart computer, then read and write ECU with foxflash again. https://www.iecutool.com/service/solve-foxflash-software-crashes-when-read-ecu.html

 Will foxflash read and write PSA edc16c3 ecu? on bench or by BDM mode? Bench mode: BOSCH EDC16 C3 [ MPC556 ] — Citroen, Peugeot [Diesel] Connect the multifunction cable as follows, use the Bench Box: Set the resistance of 1000 ohms that starts from the bench to the brown wire and after mounting the brown on the ECU To read and write use the following driver: → BENCH MODE → [brand] → MPC555/6 — [brand] → EDC16 C3 If failed to read it on bench, read it by BDM. Foxflash BDM mode is not a problem. Here is the BDM setup example:

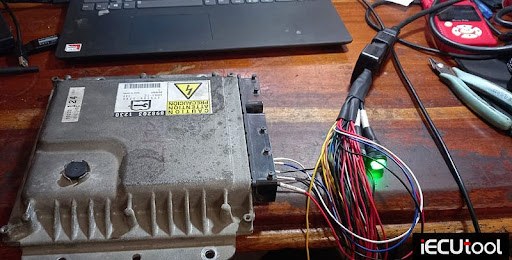

 User feedback: pcmtuner module 42 read Isuzu 4hk1-tc Denso SH7059 engine ECU successfully with godiag tricore cable on bench. Follow the pinout here Read also: http://www.pcmtuner.org/read-isuzu-denso-sh7055-ecu-with-pcmtuner/

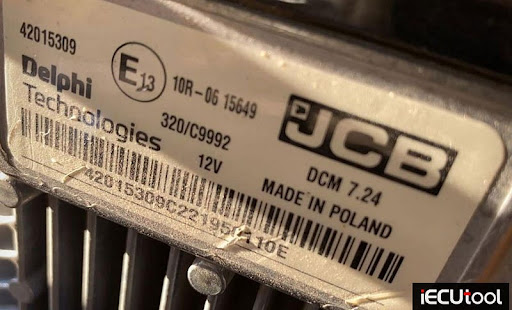

  Question: Possible to read and write JCB DCM7.24 engine ECU with foxflash ? cannot find protocol and wiring diagram. Solution: The ecu can be done via OBD. Check vehicle list. Foxflash will read and write JCB 409/TM180 Delphi DCM 7.24 via OBD.

  PCMTuner read and write PSA Peugeot 2008 2015 edc17c10 ecu successfully. Read Dpf egr off Write Ok Pinout is in the instruction Read and write ok with bench module 71

 VAG simos 8.32 pcmtuner Reading unsuccessful via OBD. Says not readable. What tools to read? PCMTuner cannot read this ECU. Flex will read it via VR. CMD read it on bench (unlock). Or try to OBD read with foxflash . It will read if there is a virtual file on service. Need luk. Some also say Foxflash can read it by BSL. Need to test by your side. www.iecutool.com
