Foxflash ECU Tool for Renault Clio EDC17C84 Bench Mode

 Foxflash new user feedback:

Renault Clio MK4, 1,5dci

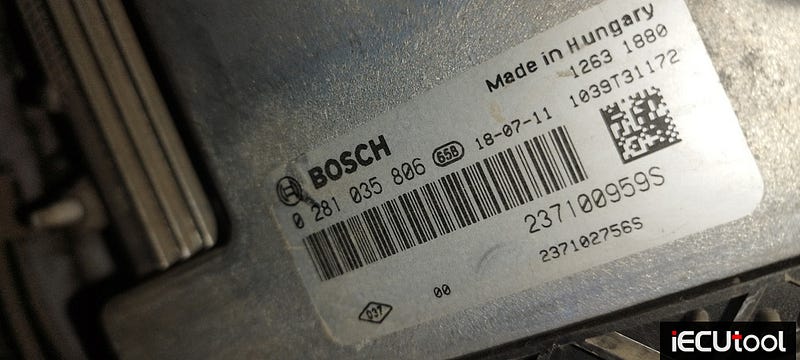

ECU: EDC17C84
Bench mode
EGR and DPF off.
Checksum by foxflash.

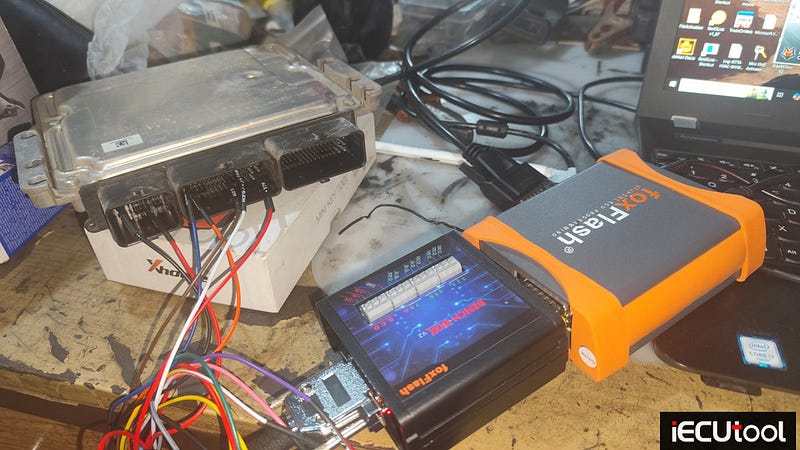

Foxflash Read and Write Renault Clio EDC17C84 ECU on Bench
Foxflash Read and Write Renault Clio EDC17C84 ECU on Bench
Foxflash Read and Write Renault Clio EDC17C84 ECU on Bench
Foxflash Read and Write Renault Clio EDC17C84 ECU on Bench
Foxflash Read and Write Renault Clio EDC17C84 ECU on Bench

Foxflash pinout to Renault EDC17C84 ECU

To read and write use the following driver:

→ BENCH TRICORE

→ RENAULT or NISSAN

→ TC1782 — RENAULT

→ EDC17 C84

ATTENTION: Some EDC17C84 enter in Bench mode with the white and brown wires on pins F4 and G4. If with previous pinout doesn’t enter in bench tricore mode, then try again by connecting it as version 2:


Foxflash Read and Write Renault Clio EDC17C84 ECU on Bench
