Foxflash Read Mini Siemens EMS5150 via OTB Mode

  Foxflash new user feedback: Mini One 1.6 Gasoline Just get ECU Siemens EMS5150 not car Read ok with OTB 1.0 adapter Write ok with OTB 1.0 adapter E85 Checksum by WinOls All perfect. OBD on bench pinout is on the document.

Foxflash Jeep EDC17C69 Error SK2 Bench Locked?

  Foxflash failed to read Jeep 2021 EDC17C69 TC1793 ECU on bench. Error SK2 Bench locked. 2021 have tprot. Not possible read by aftermarket tools. Foxflash cannot read it as bench locked. Bench mode uses a security exploit in Firmware to gain access to bootloader on processor, after 2020 most manufacturers update ECU firmware so exploit no longer works.

Foxflash Jaguar EDC17C11 Write Error Erase Solution

  Problem: Foxflash reads Jaguar ECU Edc17cp11 with no problem, when write ECU it gave an error. Any idea? Solution: It says on the program, use higher voltage. 13volts minimum. That stock power dc not enough. Recommend buying lab power supply. www.iecutool.com

Foxflash Read and Write Fiat Marelli MJD8F2

  Foxflash new feedback: Fiat marelli MJD 8F2 ECU. Read ID ok read bench ok write bench ok Checksum done by the mapper but Fox I'm doing it without worries I've done it several times.

Foxflash Read and Write PSA DCM3.5 via BDM

  Foxflash new feedback: Peugeot DCM3.5 read and write ok. To read and write use the following driver DELPHI DCM3.5 — MPC5566 — Peugeot, Citroen, Ford pinout Solder the rainbow flat cable on the pcb: Solder the rainbow flat cable on the pcb: This is the way how the customer did it. www.iecutool.com

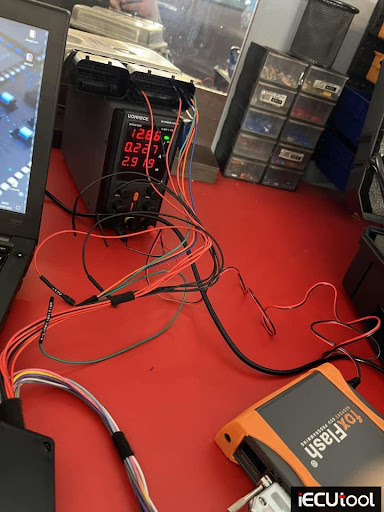

Foxflash Read and Write Renault EDC16C36 on Bench

  Foxflash new feedback: Renault Trafic 2.0 dci 2012 EDC16C36 561/2 on Bench 13.5 Volts Terminal clamp 7 on the bench box read ok Write ok Stage 1 Foxflash pinout to EDC16C36

Foxflash Read and Write Nissan SID310 via OBD

  Foxflash new feedback: Sid310 Nissan Read and write via obd. It is a 2017 nissan navarra 2.3. Write by OBD, takes 10 minutes. Checksum ok with foxflash. For Nissan/Renault SID310, better boot on it, it's better to open it. Read also: http://www.pcmtuner.org/foxflash-continental-sid310-obd-write-error-sk2/

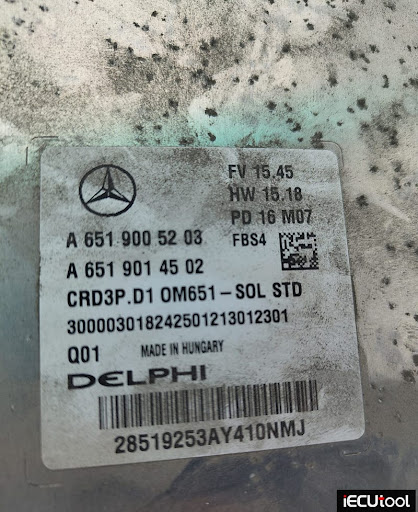

Foxflash Read and Write Mercedes CRD3P.D1 ECU on Bench

  Foxflash new feedback: Mercedes crd3p.D1 ECU Foxflash bench pinout to Mercedes CRD3P.D1 To read and write use the following driver: → BENCH MODE → MERCEDES BENZ → TC1793 — MERCEDES and choose: → CRD3P.D1 Read ok Write ok Checksum by foxflash Adblue off ok www.iecutool.com

Foxflash Cannot Read Audi MED7.1.1 on Bench?

  Problem: Audi TT 3.2 2007 unit ME7.1.1. I can see the option in foxflash car obd but it doesn't work because it asks for a key. and bench does not offer this unit. the solution? Solution: Try another tool. Mpps can sometimes connect in Bench, on these me7.1. Or use ktag or kess3 . Ktag clone even sorts these. You will be able to read ME7.1.1 ECU fitted in Audi with a VAG part number 8E909559 / BOSCH 0261207511 using ktag in boot mode. www.iecutool.com

Foxflash March Promotion: Get 15 Days Unlimited Tuning Support

  Foxflash rolls out March promotion. New buyers will get 15 days of unlimited tuning support. Valid: March 1st- March 31st, 2024. Users will get unlimited tuning support for 15 days from activation. Files have no limitation among these: How to get tuning file? Provide car brand, mode, ECU type, year, original file, and function you desire to modify to www.iecutool.com . We will send your modified file in 1–3 days.

Foxflash Continental SID310 OBD Write Error SK2

  Problem: Problem with Continental sid310, foxflash reading ok but writing doesn't let me write via OBD. voltage I attached a battery charger it was on 14v but nothing… Then I have the kess3 open the switchboard but even with the kess nothing, regarding all connections but nothing. Possible solutions: Put the ecu back in the vehicle and keep it running for 5 minutes, read password, unplug and try again… make sure your car battery is charged as power. If still failed, reading pinout password and reading and writing boot Mode boot Read pass word ok Read and write checksum ok. www.iecutool.com

Foxflash Failed to Read BMW EDC17CP02 via OBD?

  Problem: I'm new to the job, today I read a BMW EDC17CP02 ECU with foxflash tool , catch Obd, and when I wanted to write the tab with dpf off at 100%, I had an error. Any solution? Solution: EDC17CP02 has some various hardware with different types of tuning protection, that's why some work obd and some not. So just to be sure, never have to guess and look — just bench them all for piece of mind. It's a 5 minutes job to take the ecu out to bench it and get a full backup! do it and you can be super safe! If foxflash failed to read BMW EDC17CP02 on bench, check possible solution here http://www.pcmtuner.org/foxflash-failed-to-read-bmw-edc17cp02-solution/

Foxflash Failed to Read Alfa EDC16C39 via OBD?

  Problem: Got his error when trying to read this Alfa Romeo Giulietta with foxflash tool in OBD. Solution: You have to watch carefully that ecu mounts yours, because there are 1.6 105 with edc16c39 and 1.6 105 with EDC17. If it is an EDC17 ECU and you bench it. If it is an EDC16C39, check the voltage. Little low voltage. Need 13V minimum. Also C39 not always work obd. Better bench it. www.iecutool.com

Foxflash Read Audi PPD1.2 via OBD or Bench?

  Foxflash reads and writes Audi ECU Siemens/continental PPD1.2 via OBD or Bench? Many tool will do this ECU. Foxflash works fine both OBD and bench mode. OBD Mode: OK For example: Audi A4 B7 2.0tdi 125kw ECU Siemens/continental PPD1.2 OBD read ok OBD write ok Checksum by foxflash Bench mode: We also tested the PPD1.2 on the Audi car on Bench, read, write ok, checksum by fox.

Foxflash Read Peugeot Partner K9 2020 MD1CS003

  Foxflash new feedback: Peugeot Partner K9 2020 Md1cs003 DPF off scr off Bench Read ok Write ok Checksum by foxflash www.iecutool.com
