PCMTuner Read Hyundai Kefico ME 17.9.1 ECU

  Pcmtuner handled this Hyundai Kefico ME 17.9.1 nicely. Once I removed the shorted circuit from the original module. Was able to do a full read & write into the used donor. Module was plug & play on this 2008 Hyundai Genesis, didn't have to reset the smart either. With boot module 53.

How to Solve PCMTuner "Object reference not set to an instance of an object"

 Some users reported that their pcmtuner was working fine on Win7 but an error "Object reference not set to an instance of an object" occurred after update system. Here's the working solution from iecutool.com and our customers. It's a problem with windows last update. Solution 1: Try restore windows. Your windows done an update, try do roll back to previous. Solution 2: If don't work install your PC with system update no more than 2019. Solution 3: Customer solution. No restoration!!! No any reinstall. Go to Control Panel -> Programs and feature Find Microsoft Edge WebView2 Runtime Uninstall Microsoft Edge WebView2 Runtime Disconnect internet Install the old version edge web view in link mega. https://mega.nz/file/pw5jlITC#eh_9qxgoIxkl7KUlonJliCdCcFpO2qveCw2Oqbyt6Mw pcmtuner 1.2.7 now is working fine.

FoxFlash PCR2.1 Unlock in Bench Mode

 Here is the demonstration of unlocking a VAG Simos PCR2.1 ECU with Foxflash programmer in bench mode, unlocking allows all future programming to be done through OBD as well. FoxFlash PCR2.1 Unlock in bench mode PCR2.1 Unlock bench mode pinout To read and write use the following driver: → BENCH MODE → VW / AUDI / SEAT / SKODA → TC1796 — VAG → SIMOS PCR2.1 1. Unlock eeprom. 2. Read/Modify/Write flash. 3. Checksum Fox flash

FoxFlash "Incorrect file. OTP Sector Not Writable" Solution

  Problem: I tried to write VAG MED17.5 TC1766 modified file with Foxflash , but failed. It says error incorrect file. OTP sector not writable. Solution: The message says it all, the file you are writing contains information for the OTP area, either the file has been modified wrongly, does not come from the Ori file, or address offsets have changed through a solution software used to modify the file. If you write Ori back without problem then problem is your file. Do solution in Winols from Original file.

FoxFlash Read John Deere 6430 Premium L14 via OBD

 New test report: FoxFlash programming (read/write) John Deere 6430 premium engine control L14 via OBD port successfully. Connect foxflash with laptop and John deere via OBD In Foxflash software , select John Deere-> 6230–6330–6430 Premium->4.5L ENG CNTR L14′ CAN Foxflash read data very fast. Needs around 14v though. Then save data. Vehicle starts fine.

FoxFlash Read MITSUBISHI Pajero E6T0x in Boot

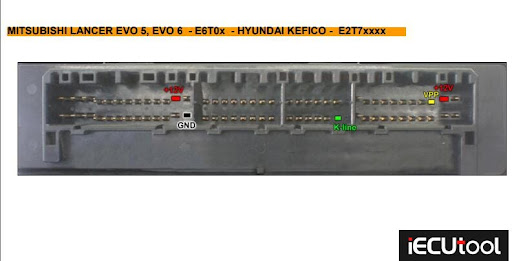

 MITSUBISHI Pajero 3.2 DID Foxflash full read/write in boot mode with checksum. Auto checksum with foxflash. MITSUBISHI E6T0x boot mode pinout In Foxflash software , select driver ->Tools boot mode ->Mitsubishi boot ->ET60X 3.1/2.5 RD Mitsubishi/Mazda MH8102F

FoxFlash PCR2.1 Unlock in Bench Mode

 Here is the demonstration of unlocking a VAG Simos PCR2.1 ECU with Foxflash programmer in bench mode, unlocking allows all future programming to be done through OBD as well. FoxFlash PCR2.1 Unlock in bench mode PCR2.1 Unlock bench mode pinout To read and write use the following driver: → BENCH MODE → VW / AUDI / SEAT / SKODA → TC1796 — VAG → SIMOS PCR2.1 1. Unlock eeprom. 2. Read/Modify/Write flash. 3. Checksum Fox flash

FoxFlash Read and Write EDC16C3 in BDM Mode

  Foxflash successfully read and write EDC16c3 Peugeot/Renault in BDM Mode. Read ID ok Read eeprom and flash pk Checksum is done by foxflash. Write Ext Flash ok. Very stable and fast. It's a adapter from ktag. some work some don't as pin different. Foxflash soon released Foxflash adapters . Here's the BDM pinout to EDC16c3 ECU To read and write use the following driver: → BENCH MODE → [brand] → MPC555/6 — [brand] → EDC16 C3 Read OK Write OK
